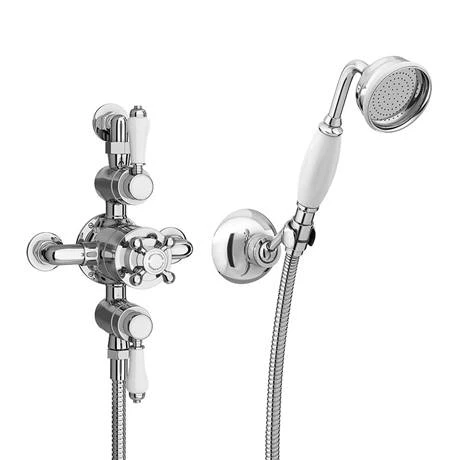

The Trafalgar traditional triple exposed thermostatic shower valve pack with stylish ceramic control dial offers thermostatic showering via three easy-to-operate controls. Transform any bathroom’s decor to the luxury and elegance of yesteryear.
Designed to work with a two shower accessories, the classic style of this exposed shower valve adds a touch of sophistication and elegance in any bathroom. Pack comes with a classic chrome plated back to wall return shower elbow, a traditional chrome 8 inch fixed overhead shower head with arm and a large Victorian style shower handset with metal hook and hose.
Manufactured using high quality chrome and brass, our range of traditional shower valves will look outstanding in any shower enclosure.
Shower Valve Details
- Height: 280mm
- Width: 130mm
- Type: Exposed Valve
- Style: Traditional
- Colour/Finish: Chrome
- Manufactured from highly durable brass
- Water Pressure: 0.5 bar to 5 bar
- Wall mounted
- Thermostatically controlled
- Classic lever and cross head handles
- Separate controls for temperature and flow.
- Operates two shower accessories separately or simultaneously – 2 Outlets
- Outlet: 15 mm (1/2″ BSP) / 18mm (3/4″ BSP) (supplied with adaptor)
- Hot water temperature 55 to 85 Degrees
- Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
- Should a pump be required we recommend a universal or negative head pump.

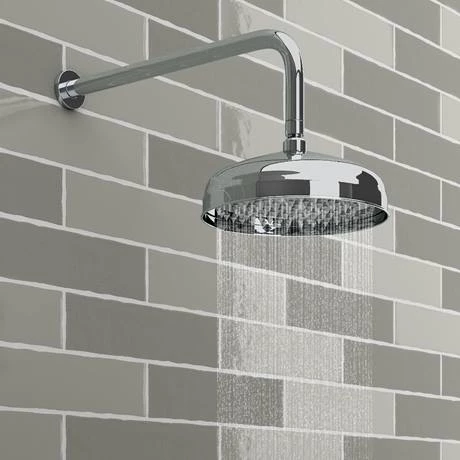

Shower Head and Arm Details
- Diameter: 210mm
- Height: 100mm
- Shower arm length: 345mm
- With Swivel ball joint
- Style: Traditional
- Colour/Finish: Polished Chrome
- Material: Brass Internals
- Pressure requirement 0.5 bar minimum
- Silicone nozzles mean that any limescale deposits can simply be rubbed away
Shower Handset Details
- Width: 70mm
- Height: 230mm
- Traditional design
- Colour/Finish: Polished Chrome & White Ceramic
- Material: Brass Internals
- Pressure: LP1 – 0.1 Bar Minimum
- ShockProof silicone ring to protect the shower head from shock damage if dropped
Holder Details
- Height: 67mm
- Length: 100mm
- Chrome Plated
- Mirror Finish
- Manufactured from highly durable brass
- Comes complete with screw and wall plug
Shower Hose Details
- Finish: Polished Chrome
- Brass Internals
- Quality Heavy Design
- Bore size: 8mm
- 1/2″ BSP connections
- Double lock
Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)
All measurements are approximate
Images are for illustrative purposes only

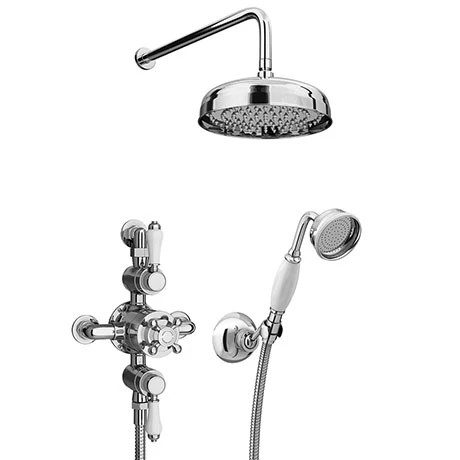

Comprises
(1) Traditional Triple Exposed Shower Valve

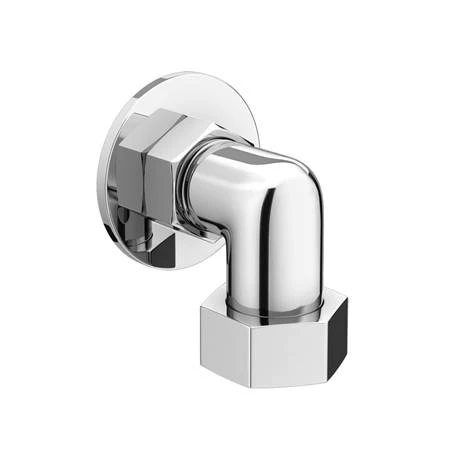

(1) Back To Wall Return Shower Elbow
(1) Traditional 8″ Shower Head
(1) Chrome 345mm Round Wall Mounted Shower Arm
(1) Traditional Shower Handset
(1) 1.5m Chrome Shower Hose
(1) Adjustable Chrome Wall Mounted Shower Handset Holder
Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.

Download Instructions
