Trafalgar Triple Concealed Shower Valve inc. Outlet Elbow, Handset & Curved Arm with Fixed Head

The Trafalgar shower package brings substantial elegance to any style of bathroom, includes a triple concealed Shower Valve, outlet elbow with handset and a curved arm with 12″ fixed over head shower rose.

The triple concealed thermostatic shower valve offers thermostatic showering via three easy-to-operate controls. Operates two shower accessories separately or simultaneously. Manufactured using high quality chrome and brass, our range of Edwardian shower valves will look outstanding in any shower enclosure.

A perfect solution for today’s bathroom, providing classic style and functionality.

Shower Valve Details

• Height: 280mm
• Width: 130mm
• Type: Concealed Valve
• Style: Traditional
• Colour/Finish: Chrome

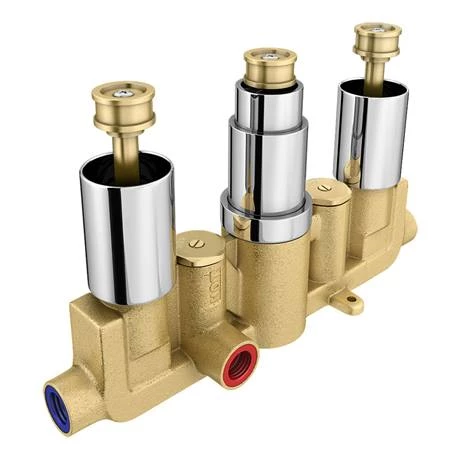

• Manufactured from highly durable brass
• Water Pressure: 0.5 bar to 5 bar

• Wall mounted
• Thermostatically controlled
• Classic face plate, lever and cross head handles
• Can be fitted vertically or horizontally.

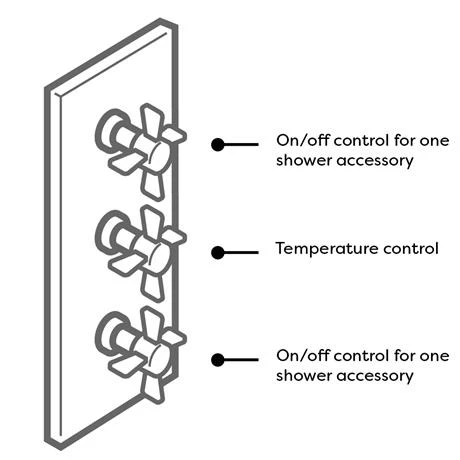

• Separate controls for temperature and flow.
• Operates two shower accessories separately or simultaneously – 2 Outlets
• Suitable for modern pressurised plumbing systems.

• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

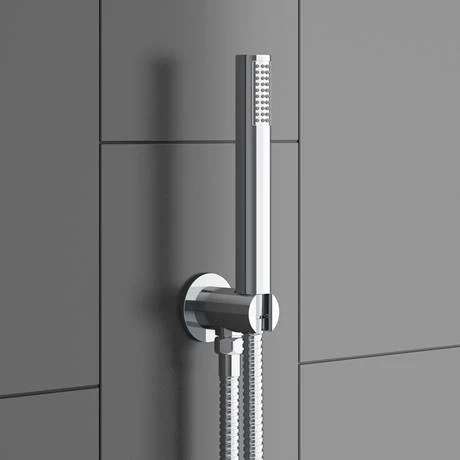

Outlet Elbow inc. Hose & Handset Details

• Depth: 59mm
• Height: 226mm
• Width: 32mm

• Manufactured To The Highest Standards
• Round Handset with Built in Outlet
• 1.5m Shower flex: Brass / Chrome plated
• Outlet Elbow with Parking Bracket: Brass / Chrome plated
• Handset: ABS plastic / Chrome plated
• Rust resistant hose
• Highly polished finish
• Pencil handset holder
• Silicone nozzles mean that any lime scale deposits can simply be rubbed away

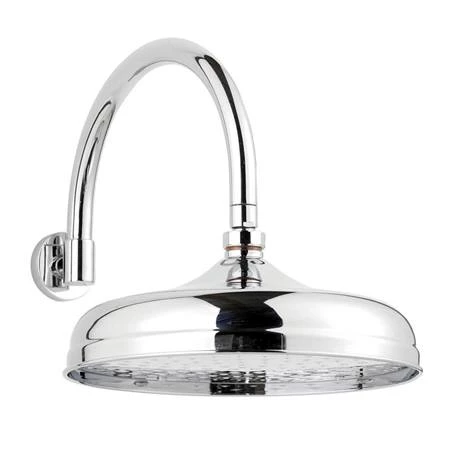

Fixed Head and Arm Details

• Round fixed 12″ head
• Shower Arm Length: 310mm
• Colour/Finish: Polished Chrome Finish
• Material: Heavyweight Brass Construction
• Create a classic bathroom statement
• Traditional Fixed Shower Head
• Curved Wall Mounted Arm
• High Quality Design
• Manufactured to the Highest Standards

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

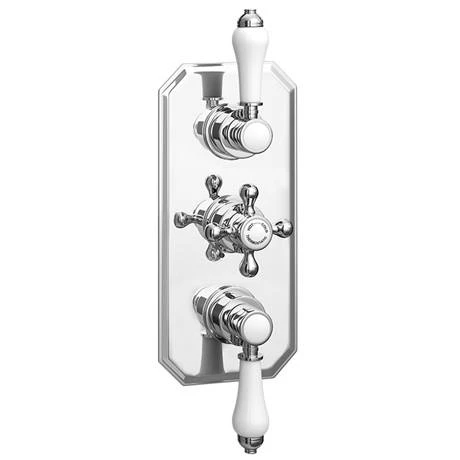

(1) Trafalgar Traditional Triple Concealed Thermostatic Shower Valve
(1) 12 Inch Apron Fixed Shower Head with Curved Wall Mounted Arm – Chrome
(1) Round Outlet Elbow with Parking Bracket, Flex & Handset

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
