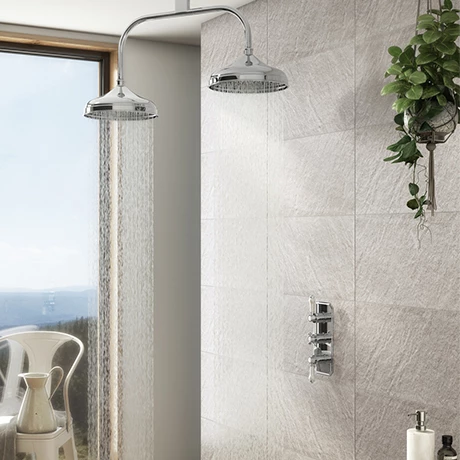

Trafalgar Traditional Dual Shower Heads with Concealed Valve

The Trafalgar Traditional Dual Shower Heads Shower Package comes supplied with a triple concealed thermostatic shower valve offering thermostatic showering via three easy-to-operate controls.

The dual traditional polished chrome shower rose head, creates a opulent luxury spa-like feel in your bathroom with these two classically styled large 12 inch rose shower heads. It is attached to the ceiling by two arms (H296mm and H226mm) and is fitted with a 2 x 1/2″ ceiling bracket water feeds.

Shower valve operates two outlets separately or simultaneously. Manufactured using high quality chrome and brass, our range of Edwardian style shower valves will look outstanding in any shower enclosure.

Shower Head Details

• Type: Dual Shower Heads
• Head Diameter: 300mm
• Head Height: 160mm
• 2 x ceiling mounted arms (H296mm and H226mm)
• Style: Traditional
• Shape: Round
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Pressure requirement 0.5 bar minimum
• Ceiling mounted
• With swivel ball joints
• Create a spa-like feeling in your bathroom
• Finished in a high quality stunning chrome finish
• Designed for use with standard 1/2” plumbing connections.
• Silicone nozzles mean that any limescale deposits can simply be rubbed away
• 2 Year Guarantee

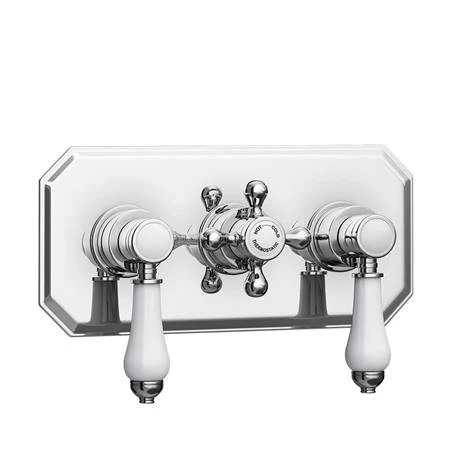

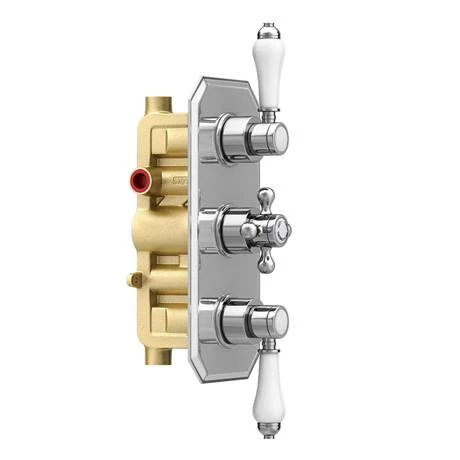

Shower Valve Details

• Height: 280mm
• Width: 130mm
• Type: Concealed Valve
• Style: Traditional
• Colour/Finish: Chrome
• Manufactured from highly durable brass
• Water Pressure: 0.5 bar to 5 bar
• Wall mounted
• Thermostatically controlled
• Classic face plate, lever and cross head handles

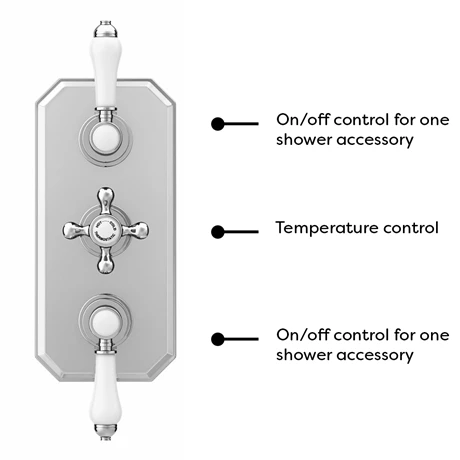

• Separate controls for temperature and flow.
• Operates two outlets separately or simultaneously – 2 Outlets
• Suitable for modern pressurised plumbing systems.
• Can be fitted vertically or horizontally.
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

All measurements are approximate

Comprises

(1) Traditional Triple Concealed Thermostatic Shower Valve
(1) Traditional 12″ Apron Fixed Dual Ceiling Mounted Shower Head

Shower valve 5 Year Guarantee, (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
