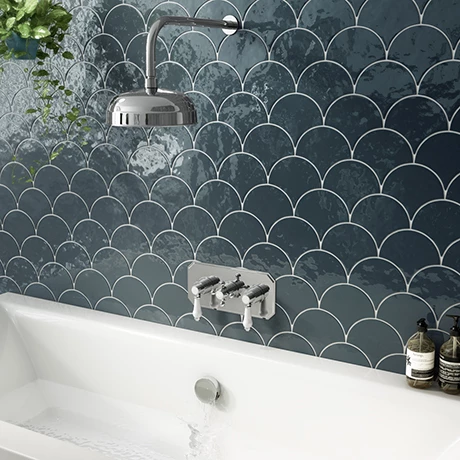

The traditional Trafalgar shower system features a triple concealed thermostatic shower valve with classic crosshead / lever handles, wall mounted 8″ shower head and overflow bath filler click clack waste brings substantial elegance to the modern bathroom.
This stylish concealed thermostatic shower system offers thermostatic showering via three easy-to-operate controls. Separate controls for temperature and flow. Operates two outlets separately or simultaneously. (fixed head and overflow bath filler)

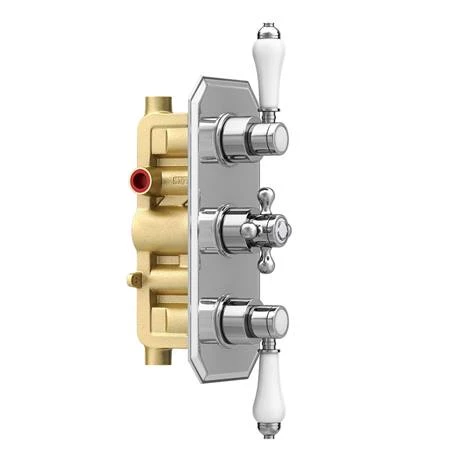

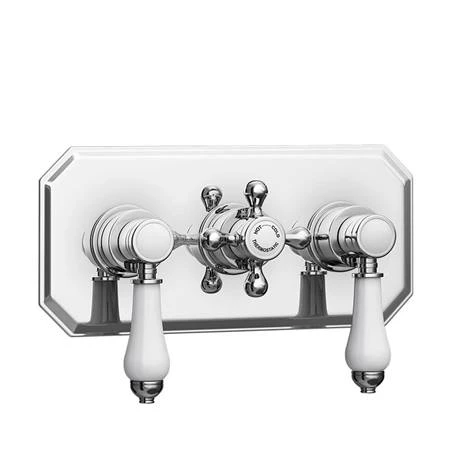

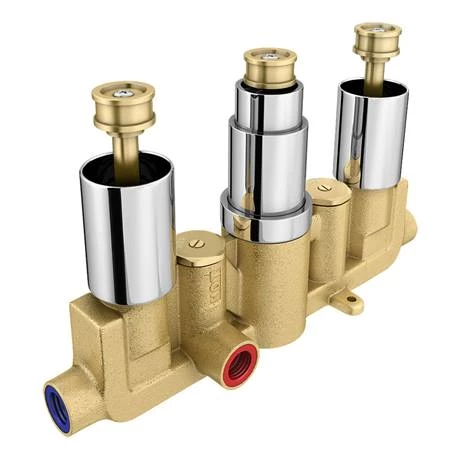

Shower Valve Details
- Height: 280mm
- Width: 130mm
- Type: Concealed Valve
- Style: Traditional
- Colour/Finish: Chrome
- Manufactured from highly durable brass
- Water Pressure: 0.5 bar to 5 bar
- Wall mounted
- Thermostatically controlled
- Classic face plate, lever and cross head handles

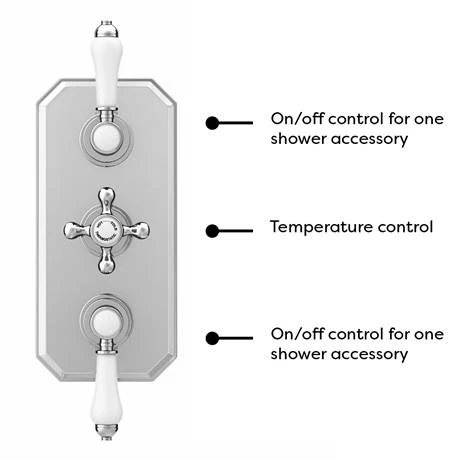

- Separate controls for temperature and flow.
- Operates two shower accessories separately or simultaneously – 2 Outlets
- Suitable for modern pressurised plumbing systems.
- Can be fitted vertically or horizontally.
- Hot water temperature 55 to 85 Degrees
- Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed
- Should a pump be required we recommend a universal or negative head pump

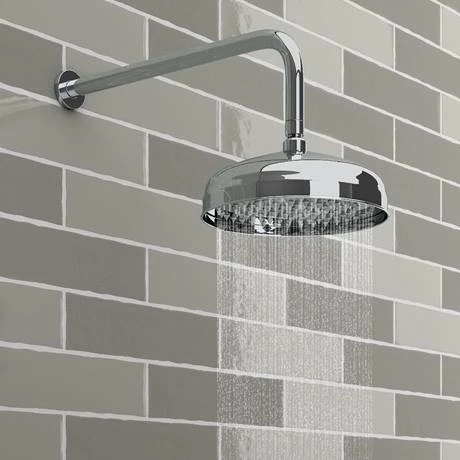

Shower Head + Arm Details
- Diameter: 210mm
- Height: 100mm
- Shower arm length: 345mm
- With Swivel ball joint
- Style: Traditional
- Colour/Finish: Polished Chrome
- Material: Brass Internals
- Pressure requirement 0.5 bar minimum
- Installation of the arm requires rear access behind the wall.
Round Slimline Freeflow Bath Filler Waste Details
- Style: Modern
- Shape: Round
- Colour/Finish: Chrome
- Product Type: Freeflow Bath Filler and Overflow
- Click Clack Bath Waste
- Requirement – Suitable for all plumbing systems. Suitable for baths up to 18mm thick
- Bath Filler Option – connects to hot and cold water supply.
- Bath filler must be fitted on a flat edge.
Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)
Pictures for illustrative purposes only.
All measurements are approximate
Comprises
(1) Traditional Triple Concealed Thermostatic Shower Valve
(1) Traditional 8″ Apron Rose Shower Head
(1) 345mm Round Shower Arm
(1) Round Slimline Freeflow Bath Filler Click Clack Waste
Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
