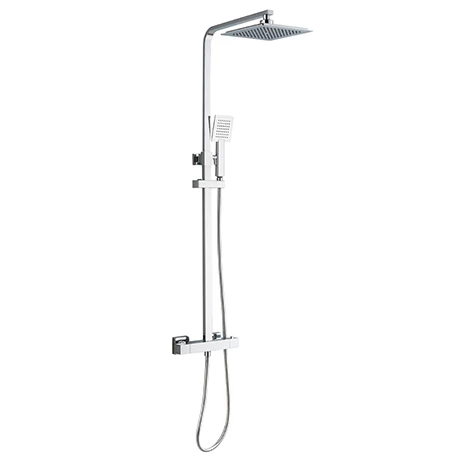

Summit Modern Square Thermostatic Shower – Chrome

The Summit Modern Square Thermostatic Shower has a sleek and contemporary square shape that suits modern wetrooms and wash spaces. For a personalised experience, simply tilt the fixed rainfall shower head to your desired angle and adjust the lightweight handset – handy for rinsing hair and soap suds – to your preferred height. This clever thermostatic mixer shower system keeps your water temperature consistent so you won’t get any unpleasant surprise from scalding or freezing spray. Pair with a Newark Quadrant Shower Enclosure to protect your space from splashes.

Product Details

• Adjustable Height: 870-1240mm
• Projection: 460mm
• Width: 280mm
• Shower Head: 200x200mm
• 150mm between pipe inlet centres
• Square Modern Thermostatic Shower
• Finish: Polished Chrome
• High quality design and build
• Adjustable height for handset
• Easy installation
• Thermostatic system
• Working pressure between 0.5 to 5.0
• 1.5m Quality flexible hose
• One fixed rainfall style head with swivel ball joint and one shower handset.
• Round thermostatic mixing valve of brass construction with built-in diverter to control flow between overhead to hand shower

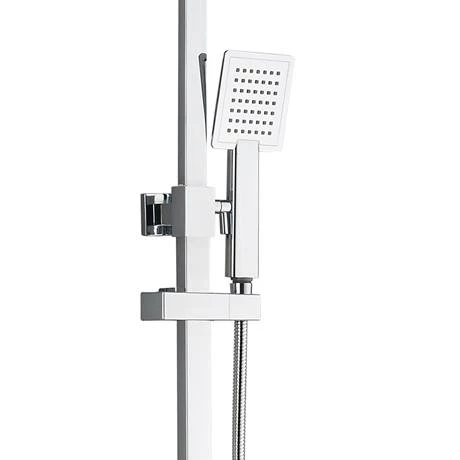

• Lightweight handset minimises risk of damage to bath and/or shower tray in case of accidental droppage.
• For Gravity feed systems shower needs 5 meters of pipe between tank & shower head (we suggest using a shower pump).
• Hot water temperature 55 to 85 Degrees
• Should a pump be required we recommend a universal or negative head pump

• Flow rates:
• 0.5 bar – 6 L/Min
• 1 bar – 9 L/Min
• 2 bar – 12.9 L/Min
• 3 bar – 16 L/Min
• 4 bar – 18.4 L/Min
• 5 bar – 20.6 L/Min


Please note: Certain parts are chrome plated plastic, not metal

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Pictures for illustrative purposes only

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
