Roper Rhodes Event Square Dual Function Shower System with Fixed Shower Head – SVSET17

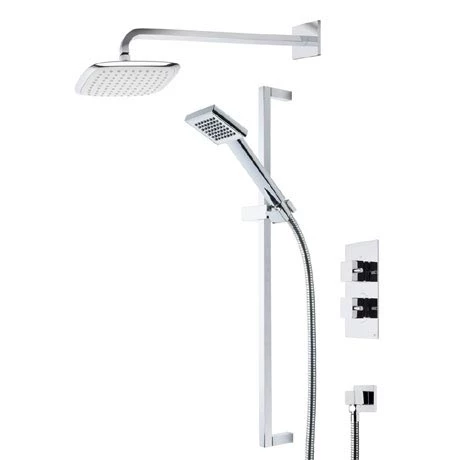

Roper Rhodes collection of concealed all-in-one shower systems offer a luxurious showering experience combined with good looks. The Event Square Dual Function Shower System with Fixed Shower Head consists of a two function thermostatic valve, square 200mm shower head and arm, square slide shower rail, shower hose, single function handset and wall elbow. Comes TMV2 approved and is suitable for all plumbing systems with a minimum pressure of 0.5 bar and above.

Product Details

• Finish: Chrome

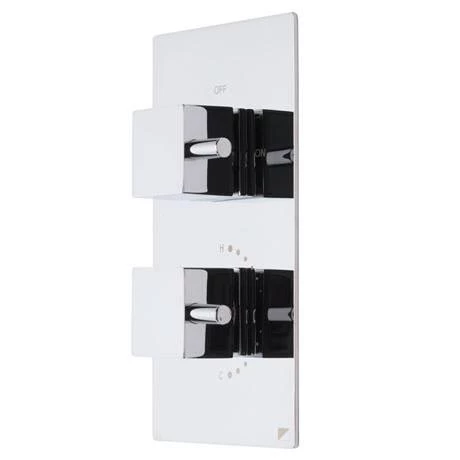

• Dual function thermostatic valve
• 415mm fixed arm

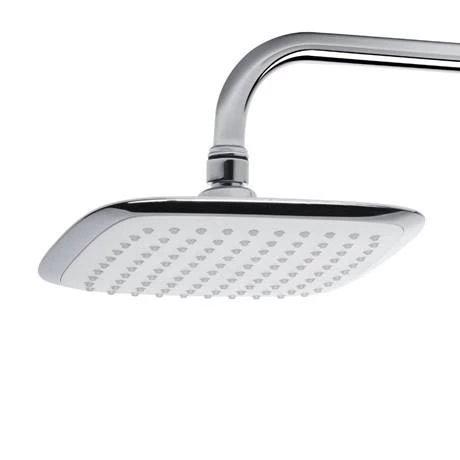

• 200mm shower head
• Square slide shower rail

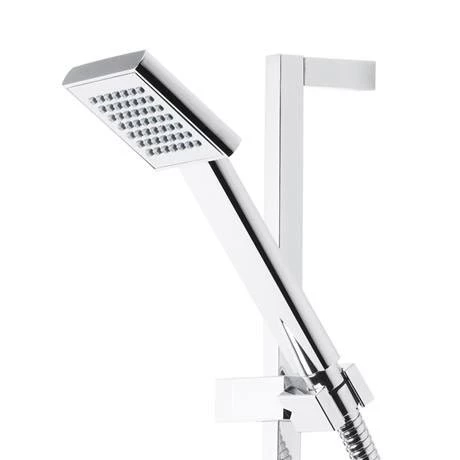

• Single function shower handset
• Shower hose & wall elbow
• Suitable for all plumbing systems
• TMV2 approved
• Easy to use separate flow and temperature control
• Minimum pressure of 0.5 bar

10 year guarantee

Flow Rates

0.1 Bar – (Valve) 5.75 l/m (Fixed Head) 0 l/m (Handset) 2 l/m
0.2 Bar – (Valve) 7.81 l/m (Fixed Head) 4.4 l/m (Handset) 3.5 l/m
0.3 Bar – (Valve) 9.37 l/m (Fixed Head) 6.6 l/m (Handset) 5 l/m
0.4 Bar – (Valve) 10.73 l/m (Fixed Head) 7.4 l/m (Handset) 6.3 l/m
0.5 Bar – (Valve) 11.97 l/m (Fixed Head) 8.8 l/m (Handset) 7.3 l/m
1.0 Bar – (Valve) 17.16 l/m (Fixed Head) 13.2 l/m (Handset) 10.9 l/m
2.0 Bar – (Valve) 24.29 l/m (Fixed Head) 19 l/m (Handset) 15.8 l/m
3.0 Bar – (Valve) 30.02 l/m (Fixed Head) 23.6 l/m (Handset) 20 l/m
4.0 Bar – (Valve) 34.5 l/m (Fixed Head) 27 l/m (Handset) 24 l/m
