Nuie Victorian Exposed Valve inc. Rigid Riser Kit, Diverter, 8″ Shower Rose & Handset

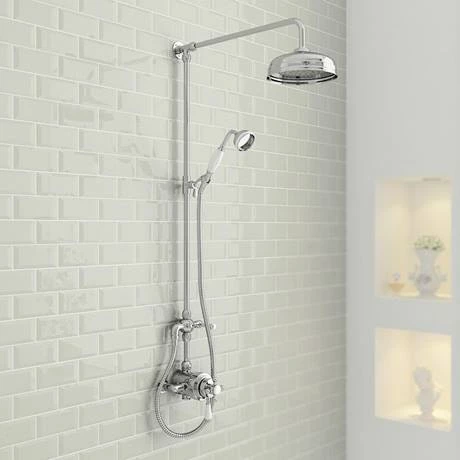

The Victorian Grand Rigid Riser Kit has a 8″ in diameter shower rose. It has a built-in diverter so you can switch between the fixed head or hand held shower. Combined with the exposed shower valve this rigid riser shower kit enhances the appearance of any bathroom.

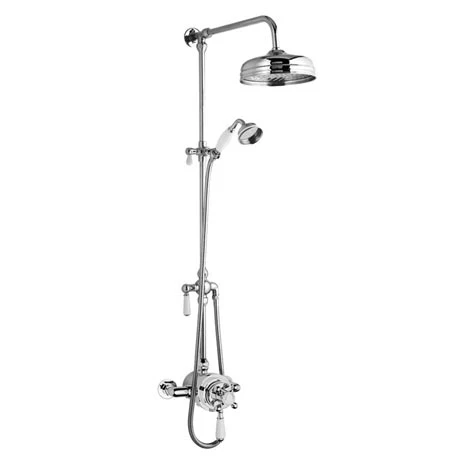

Rigid Riser Kit with Diverter Details

• Product Type – Rigid Riser Kit with Diverter
• Product Code – AM312
• Traditional Design
• Colour/Finish – Polished Chrome
• Material – Brass Internals
• Manufactured to the Highest Standards
• Smooth Operation with Quality Components
• Minimum 0.5 bar water Pressure is required for best performance
• Height 1275mm
• Includes handset, shower hose and shower head.
• Diameter of the main shower head is 8″
• Guarantee – 20 Year

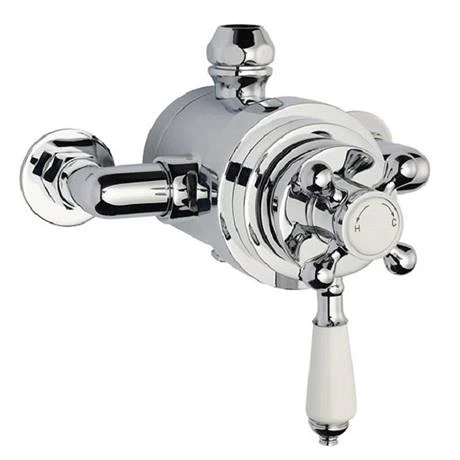

Shower Valve Details

• Projection – 153mm
• Type – Thermostatic Shower Valve
• Product Code – ITY309
• Finish – Chrome
• Manufactured from solid brass
• Accurate flow control
• Thermostatic control to +/- 2°C- even if the water pressure fluctuates.
• Full thermal protection to prevent scalding in the event of hot or cold water shut off.
• In the event of hot or cold water failure, the valve will shut down within 1.5 seconds.
• The patented cartridge is highly resistant to calcium build up – even in hard water areas.
• Our valves are suitable for use with all systems: gravity fed, pumped, unvented high pressure or fully modulated combi-boilers.
• Excellent flow rates – even at low pressure.
• Our valves can deliver 5.5 litres per minute at 0.1 bar pressure.
• The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn’t need re-plumbing.
• Simply remove the cartridge, turn 180 degrees and replace.
• Smooth Operation with Quality Components
• Water Pressure: LP1 – 0.1 bar pressure minimum
• Standards EN200 and/or WRc/NSF
• 150mm between pipe inlet centres
• 5 Year Guarantee
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump


Package Includes

(1) Hudson Reed Victorian Grand Rigid Riser Kit with Shower Rose – AM312
(1) Traditional Dual Exposed Thermostatic Shower Valve – Chrome – ITY309

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
