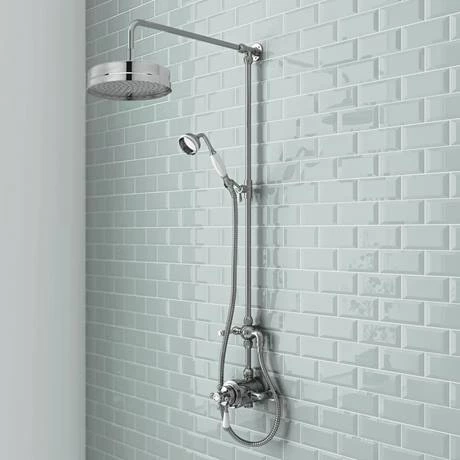

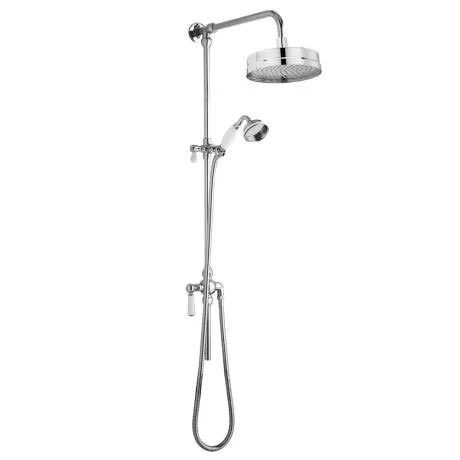

A classic Luxury Rigid Riser Kit with Exposed shower valve. Complete the look of your bathroom with a Designer rigid riser shower kit. It has a built-in diverter so you can switch between the fixed head or hand held shower. All kits comprise of exposed pipe work including a sliding rail, shower hose and shower head. Combined with the supplied exposed dual shower valve this rigid riser shower kit will enhance the appearance of any bathroom.
The Traditional Dual Exposed Thermostatic Shower Valve offers thermostatic showering with two easy to operate controls, one operates flow control whilst the other allows temperature selection. To be used with a fixed head or slide rail kit. Suitable for all types of plumbing installation this valve has the added safety benefit of a built in anti-scald device should the cold water supply fail.
Rigid Riser Kit Details
- Height – 1245mm
- Traditional Design
- Colour/Finish – Polished Chrome
- Material – Brass Internals
- Ceramic handle detail
- Includes sliding rail, shower hose and shower head.
- Minimum 0.5 Bar Pressure Required
- Manufactured to the Highest Standards
- Diameter of the main shower head is 8″
- Smooth Operation with Quality Components
- Suitable for 15 mm (1/2″ BSP) / 18mm (3/4″ BSP) (supplied with adaptor)
Shower Valve Details
- Projection – 154mm
- Type – Thermostatic Shower Valve
- Product Code – ITY309
- Finish – Chrome
- Manufactured from solid brass
- Accurate flow control
- Thermostatic control to +/- 2°C- even if the water pressure fluctuates.
- Full thermal protection to prevent scalding in the event of hot or cold water shut off.
- In the event of hot or cold water failure, the valve will shut down within 1.5 seconds.
- The patented cartridge is highly resistant to calcium build up – even in hard water areas.
- Our valves are suitable for use with all systems: gravity fed, pumped, unvented high pressure or fully modulated combi-boilers.
- Excellent flow rates – even at low pressure.
- Our valves can deliver 5.5 litres per minute at 0.1 bar pressure.
- The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn’t need re-plumbing.
- Simply remove the cartridge, turn 180 degrees and replace.
- Smooth Operation with Quality Components
- Water Pressure: LP1 – 0.1 bar pressure minimum
- Standards EN200 and/or WRc/NSF
- 150mm between pipe inlet centres
- 5 Year Guarantee
- Hot water temperature 55 to 85 Degrees
- With gravity fed systems a pump will be required, we recommend a universal or negative head pump
Guarantee – 5 Year
Flow Rates
0.1 Bar – 5.5 l/m
0.5 Bar – 14.5 l/m
1.0 Bar – 22 l/m
2.0 Bar – 30 l/m
3.0 Bar – 35 l/m
Comprises
(1) Traditional Luxury Rigid Riser Kit with Diverter – Chrome
(1) Traditional Dual Exposed Thermostatic Shower Valve – Chrome
Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)
Product images are for illustration purposes only
All measurements are approximate
Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
