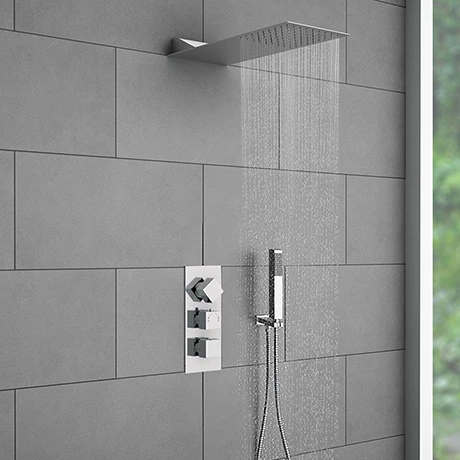

Milan Square Shower Package incl. Flat Fixed Head + Handset

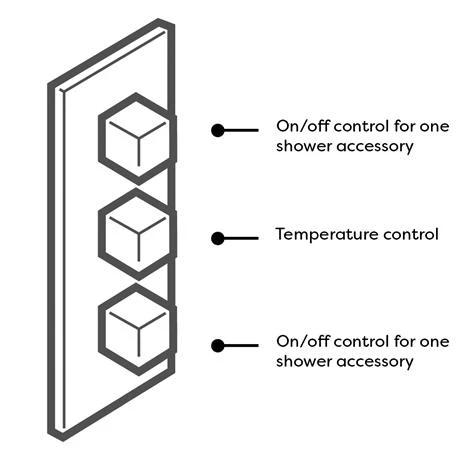

The Milan Square shower package offers thermostatic showering via three easy-to-operate controls, this shower valve has separate controls for temperature and flow. Operates two shower accessories separately or simultaneously. Supplied with a overhead steel flat square shower head featuring a stylish sleek minimalist design that looks great in any setting and a square outlet elbow with parking bracket, flex & rectangular handset.

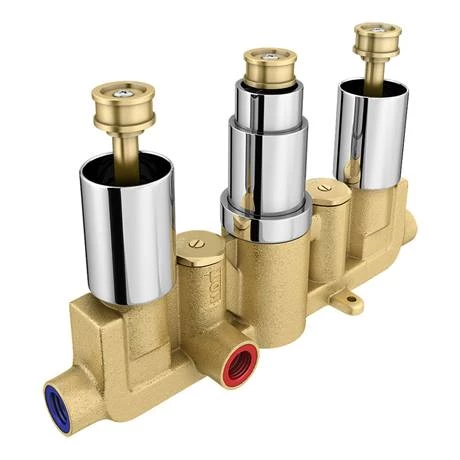

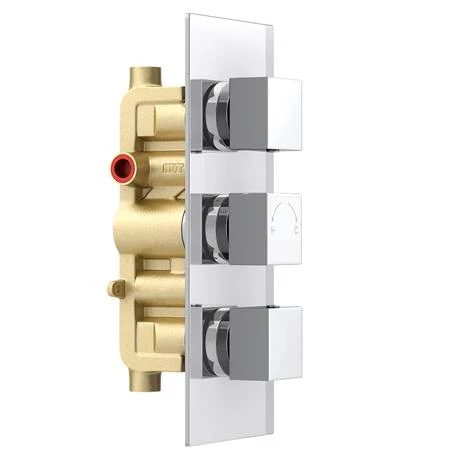

Shower Valve Details

• Width: 120mm
• Depth: 140mm
• Height: 265mm
• High Quality Design
• Finish: Polished Chrome
• Brass Internals
• Thermostatically controlled
• Valve Handles: Square
• Rectangular Faceplate
• Style: Modern
• Operates two points separately or simultaneously
• Water Pressure: 0.5 bar to 5 bar

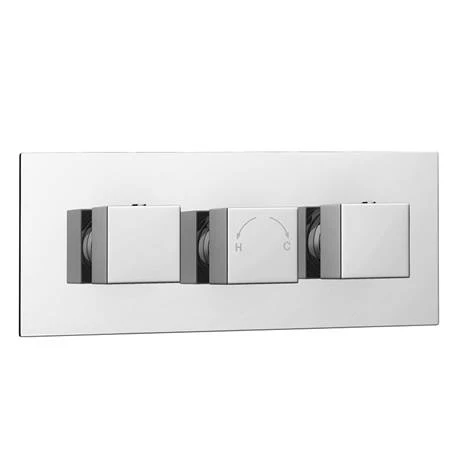

• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.

• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M


Shower Head Details

• Dimensions: 220 x 500mm
• Style: Modern
• Colour/Finish: Chrome Effect
• Material: Stainless Steel
• Pressure requirement: 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Wall Mounted
• Rub clean nozzles makes this item easy to clean and maintain

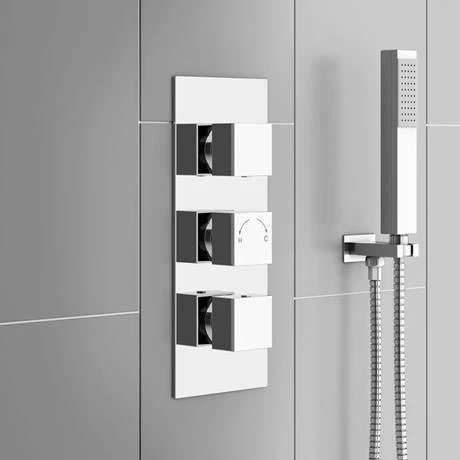

Square Outlet Elbow + Parking Bracket, Flex & Handset Details

• Manufactured To The Highest Standard By Hudson Reed
• Rectangular Handset with Built in Outlet
• Suitable for all plumbing systems
• Shower flex: Brass / Chrome plated
• Outlet Elbow with Parking Bracket – Brass / Chrome plated
• Rectangular handset: ABS plastic / Chrome plated
• Shower hose – 1.5m/150cm Approx.

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Product pictures for illustrative purposes only.

All measurements are approximate

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
