Milan Square Push-Button Shower w. Flat Riser Rail Kit + Rainfall Fixed Head

After a long day, relax under a luxurious rainfall shower head with this Milan Shower Valve Pack. Or, if you prefer, use the detachable handset for a more targeted water flow – not to mention more thorough rinsing. Made from strong brass and finished in chrome, this 2 outlet shower valve is hardwearing and easy to keep looking smart. A contemporary square handle enables you to change the temperature of this wall mounted shower while two simple push buttons turn the two outlets on and off.

Shower Valve Details

• Height: 215mm
• Width: 120mm
• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Square
• Brass Internals
• Select push button On/Off control for 2 outlets
• Buttons provided: hand shower and overhead shower
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Easy to use
• Rectangular Faceplate
• For use with 2 Outlets
• Bottom knob controls temperature.
• Instant start/stop activation.
• Suitable for modern pressurised plumbing systems
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump
• Flow Rates:
• 0.5 bar – 3.5 L/M
• 1 bar – 9 L/M
• 2 bar – 15 L/M
• 3 bar – 18.5 L/M
• 4 bar – 21.5 L/M
• 5 bar – 24 L/M

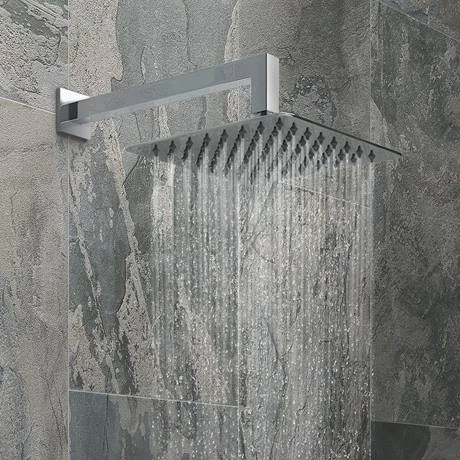

Shower Head Details

• Shower Head: 200 x 200mm
• Shower Arm Length: 393mm
• Style: Modern
• Colour/Finish: Polished Chrome
• Material: Stainless Steel
• Head Thickness: 3mm (excluding swivel joint)
• Wall mounted
• 90-degree Bend
• Pressure requirement 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Supplied with swivel joint
• Rub clean nozzles makes this item easy to clean and maintain

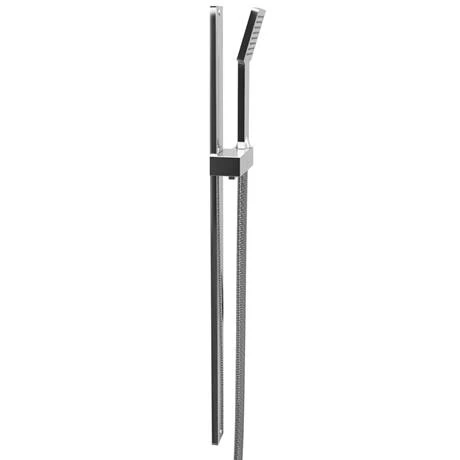

Flat Minimalist Riser Rail Kit with Square Outlet Elbow Details

• Height: 700mm
• Width: 40mm
• Colour/Finish: Polished Chrome
• Type: Flat Slide Rail Kit
• Flush To Wall
• Style: Modern
• High Quality
• Rust Resistant Hose
• Pressure Suitability Low 0.1 Bar
• Rainfall 1-Function Shower Head
• Easy-clean – Silicone nozzles mean that any limescale deposits can simply be rubbed away
• Suitable for all plumbing systems
• 1.5m Shower flex
• Outlet Elbow (chrome plated plastic)
• Elbow connections: 1/2″ BSP Male (both into wall and coming out of wall).
• Wall mounted

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Product images for illustration purposes only

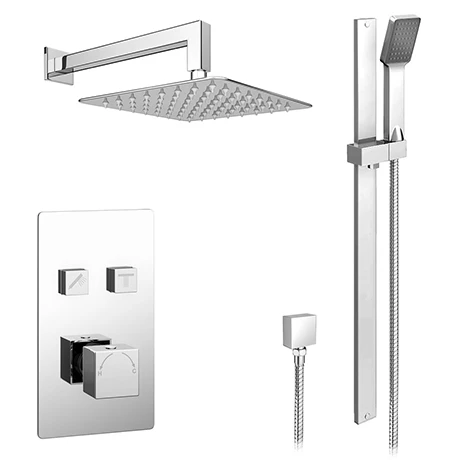

Comprises

(1) Milan Twin Modern Square Push-Button Concealed Shower Valve with 2 Outlets
(1) Milan 200 x 200mm Ultra Thin Square Shower Head
(1) 90 Degree Bend Shower Arm
(1) Flat Flush To Wall Minimalist Style Riser Rail Kit with Handset

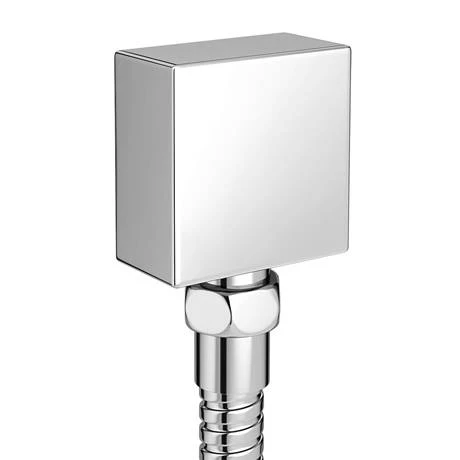

(1) Square Outlet Elbow

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
