Milan Square Concealed Triple Shower Valve with Fixed Head & 4 Body Jets – Chrome

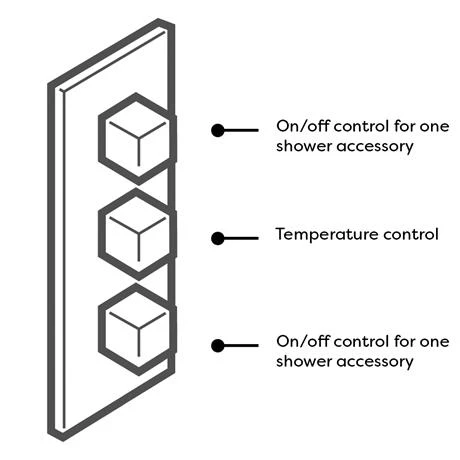

The Milan range brings substantial elegance to the modern bathroom. The triple shower valve enables you to select body jets for a quick freshen up or for a real drenching. Separate controls for temperature and flow. Operates two shower accessories separately or simultaneously: fixed head & slide rail kit, fixed head & body jets or slide rail kit & body jets.

Shower Valve Details

• Width: 120mm
• Depth: 140mm
• Height: 265mm
• High Quality Design
• Finish: Polished Chrome

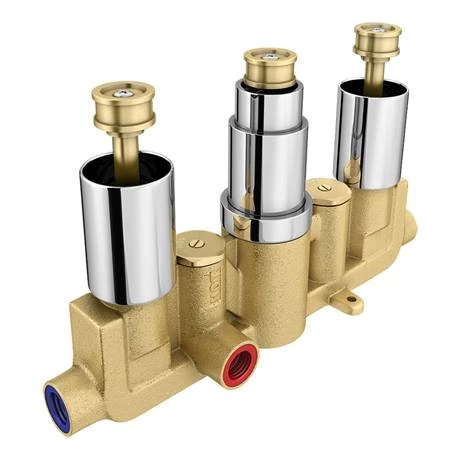

• Brass Internals
• Thermostatically controlled
• Valve Handles: Square

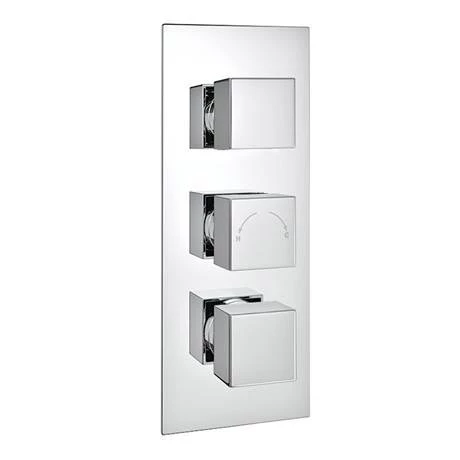

• Rectangular Faceplate
• Outlets: 2
• Style: Modern
• Operates two points separately or simultaneously
• Water Pressure: 0.5 bar to 5 bar
• Suitable for modern pressurised plumbing systems.

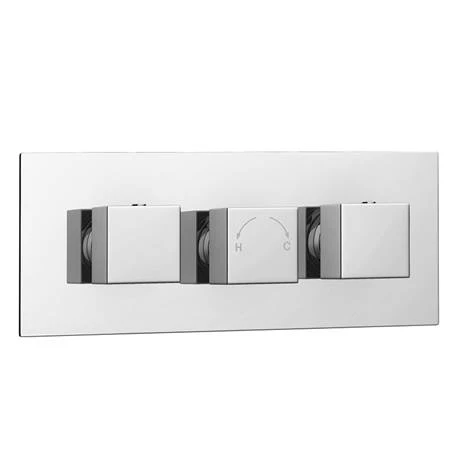

• Can be fitted vertically or horizontally
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a correct booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

Fixed Square Shower Head with Wall Mounted Arm Details

• Shower head dimensions: 200 x 200mm
• Shower arm length: 354mm
• Style: Modern
• Colour/Finish: Chrome
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted square arm.
• Please note: Shower head chrome plated plastic, not metal.
• Installation of the arm requires rear access behind the wall.


Body Jet Details

• Overall Size: D60 x W50 x H50mm approx
• Shroud: H50 x W50mm
• Brass 1/2 inch BSP thread: 25mm long
• 16 rubber nozzles
• Colour/Finishes: Polished Chrome
• Material: Brass
• Product Type: Slim Square Body Jet
• Supplied with swivel joint
• Silicone nozzles mean that any limescale deposits can simply be rubbed away

Pictures for illustrative purposes only.

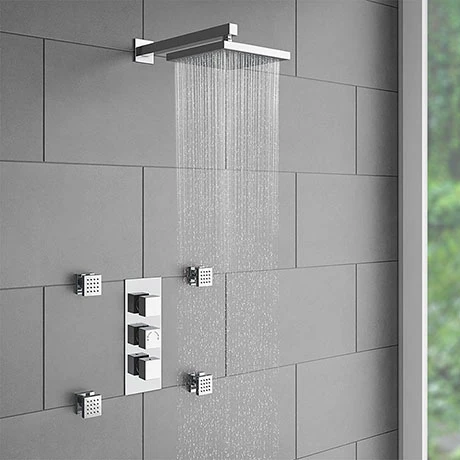

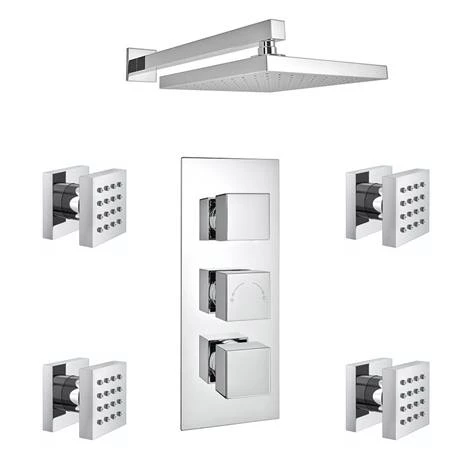

Comprises

(1) 200 x 200mm Square Head – Chrome
(1) Square Shower Arm – Chrome
(1) Triple Concealed Thermostatic Shower Valve – Chrome
(4) Square Body Jets – Chrome

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
