Milan Shower Valve with Built-in Diverter + Rainfall/Water Blade Shower Head

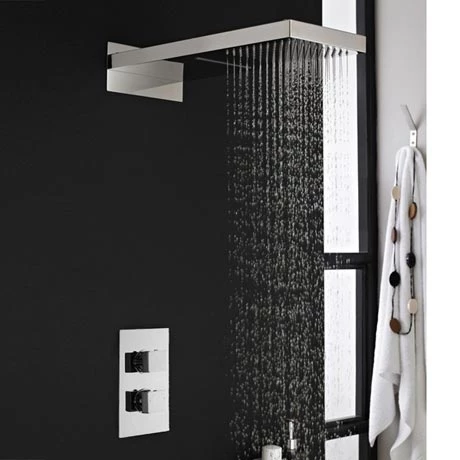

This Milan minimalist concealed thermostatic shower valve package compliments any modern bathroom suite, offers a flexible shower solution with a neat finish. Pipework is concealed for a minimalist look. Includes a shower valve which diverts controls the two functions ‘Rain effect or waterfall effect’ on the shower head. Easy to operate controls – the Top control is the diverter to switch between shower head functions, the bottom control adjusts the temperature.

Shower Valve Details

•
  Height: 215mm
• Width: 120mm
• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Square
• Brass Internals
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Rectangular Faceplate
• Can be fitted vertically or horizontally
• Outlets: 2
  Built-In Diverter

• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

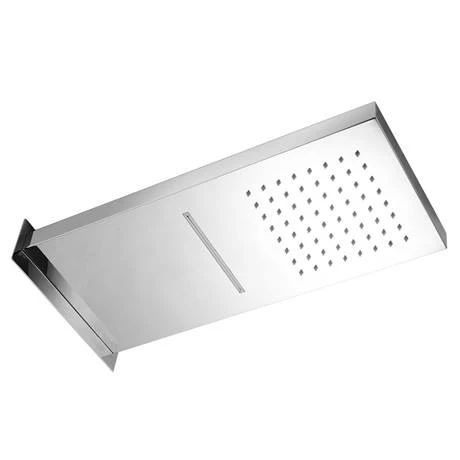

Shower Head Details

•
  Projection: 500mm

• Width: 220/240mm

• Height: 30/80mm

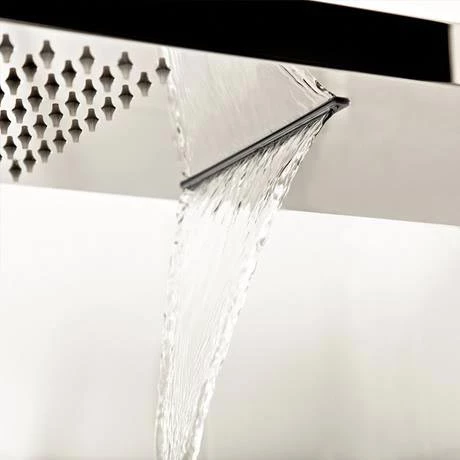

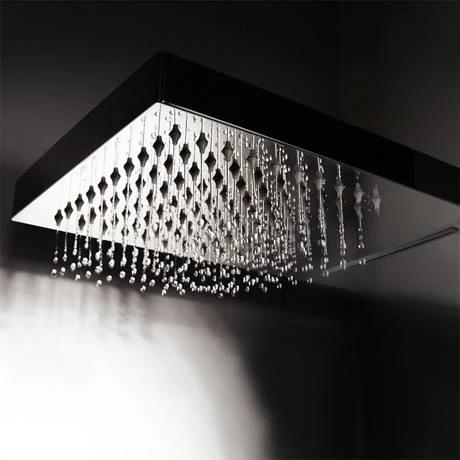

• Type: Overhead Fixed Shower head with integrated arm rectangular rain + waterfall functions

• Finishes: Chrome Effect

• Material: Stainless Steel

• Wall Mounted
• Rub clean nozzles makes this item easy to clean and maintain

• Inlet Connections: 1/2″ BSP

• Recommended water pressure: 0.5 – 3 bar
• Max
  Water pressure: 8 bar
• Recommended hot water temp: 37 – 57 °C
• Max
  Hot water temp: 73 °C

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

(1) Milan Concealed Twin Shower Valve with Built-in Diverter
(1) Rectangular Shower Head with Water Blade

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
