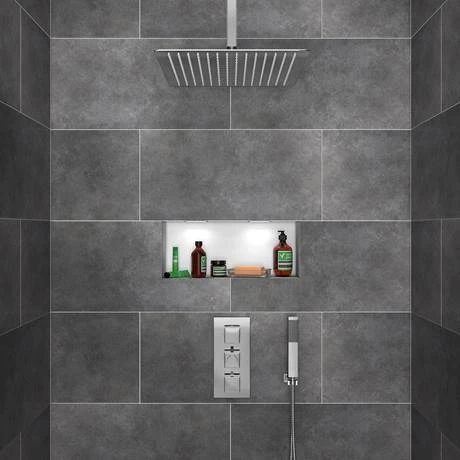

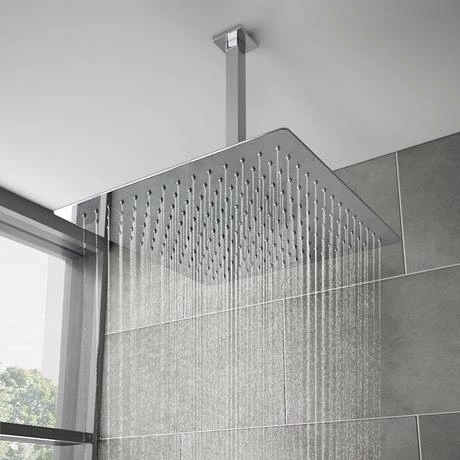

Bring a cool and contemporary aesthetic to your bathroom or wet room with the Milan Shower Package. The set includes a large rainfall shower head to add a touch of luxury to your space. A concealed 3 outlet shower valve lets you switch between the head and separate handheld shower or use them at the same time. Longing for a blissful shower experience? Use the intuitive handles to tailor the temperature and flow exactly to your liking. Each piece in this set has a simple, angular design and features a gleaming polished chrome finish for a distinctly modern look.

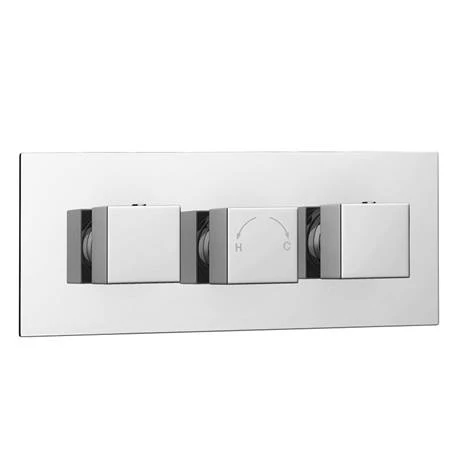

Shower Valve Details
Width: 120mm
Depth: 140mm
Height: 265mm
High Quality Design
Finish: Polished Chrome

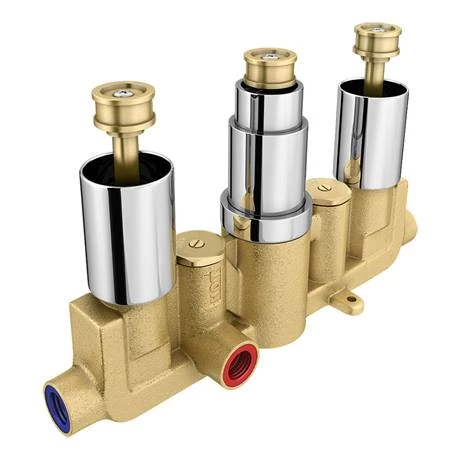

Material: Brass Internals
Thermostatically controlled
Valve Handles: Square
Rectangular Face plate
Style: Modern
Operates two points separately or simultaneously
Water Pressure: 0.5 bar to 5 bar
Can be fitted vertically or horizontally
Suitable for modern pressurised plumbing systems.
- Hot water temperature 55 to 85 Degrees
- Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
- Should a pump be required we recommend a universal or negative head pump.
- Flow Rates:
- 0.5 bar – 9.6 L/M
- 1 bar – 14.1 L/M
- 2 bar – 20.5 L/M
- 3 bar – 24.8 L/M
- 4 bar – 28.3 L/M
- 5 bar – 32 L/M

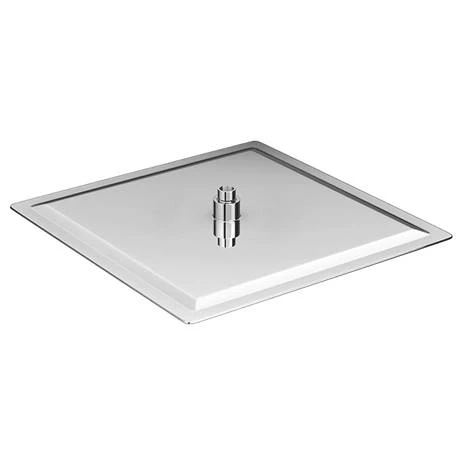

Shower Head Details
Style: Modern
Shape: Square
Colour/Finish: Chrome Effect
Material: Stainless Steel
Dimensions: 400 x 400mm
Thickness/Profile: 2mm (excluding swivel joint)
Pressure requirement: 0.5 bar minimum
Inlet Connections: 1/2″ BSP
Supplied with 360 Degree Swivel Ball Joint
Rub clean nozzles makes this item easy to clean and maintain
Shower Arm Details
Height: 150mm
Finish: Chrome
Product Type: Contemporary
- Ceiling Mounted
Supply: Suitable for all plumbing systems
Inlet Connections: 1/2″ BSP
Working Pressures: Min 0.2bar, Max 8.0bar
Supplied with metal back nut.
Designed to be used in conjunction with shower heads/roses shower valves.
Square Outlet Elbow with Parking Bracket, Flex + Handset Details
Depth: 63mm
Height: 228mm
Width: 40mm
Manufactured To The Highest Standards
Rectangular Handset with Built in Outlet
Suitable for all plumbing systems
1.5m Shower flex – Brass / Chrome plated
Outlet Elbow with Parking Bracket – Brass / Chrome plated
Rectangular handset – ABS plastic / Chrome plated
Rust resistant hose
Highly polished finish
Square handset holder
Pictures for illustrative purposes only
All measurements are approximate
Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

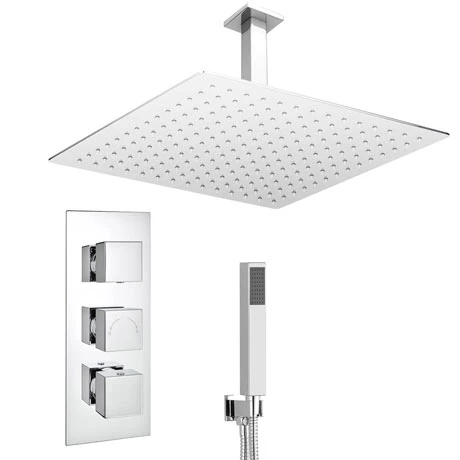

Comprises
(1) Milan Chrome Triple Square Concealed Thermostatic Shower Valve
(1) Milan Large Ultra Thin Square Shower Head (400 x 400mm)
(1) Chrome Square Ceiling Fed Shower Arm
(1) Square Outlet Elbow with Parking Bracket, Flex + Handset
Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
