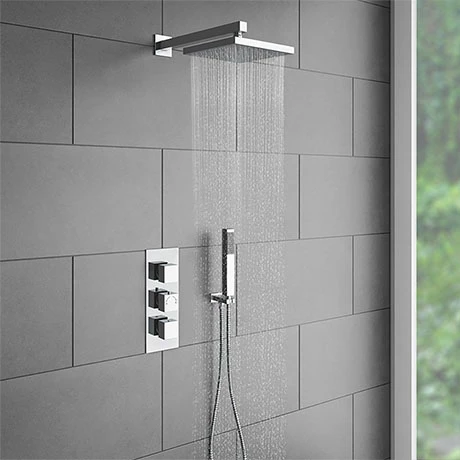

Milan Concealed Shower Package with Head + Handset

Opting for a trendy, minimalist look in your bathroom? This sleek Milan Shower Package conceals all piping for a clean, flawless appearance. It includes a showerhead, handset and faceplate and creates a contemporary presence thanks to its squared profile and clean lines. Built with style and functionality in mind, the clever thermostatic valve can be fitted vertically or horizontally while its practical shower mixer allows you to control temperature and water flow either separately or simultaneously.

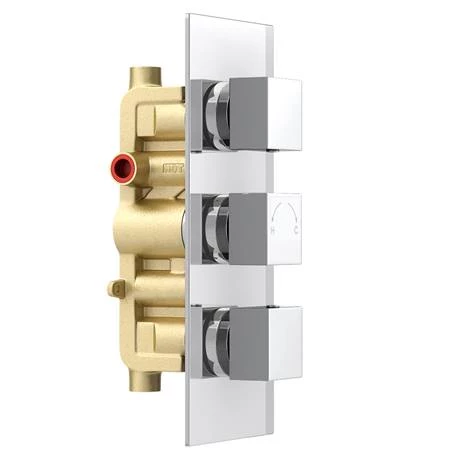

Shower Valve Details

• Width: 120mm
• Depth: 140mm
• Height: 265mm
• High Quality Design
• Finish: Polished Chrome

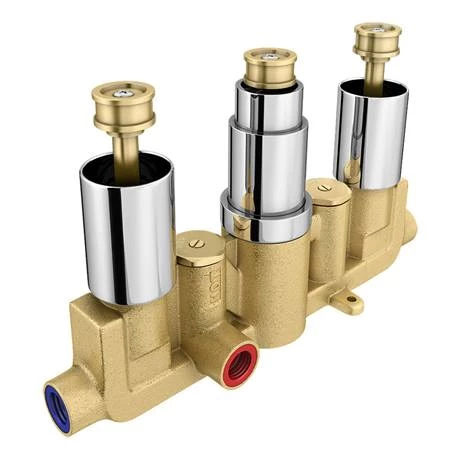

• Brass Internals
• Thermostatically controlled
• Valve Handles: Square

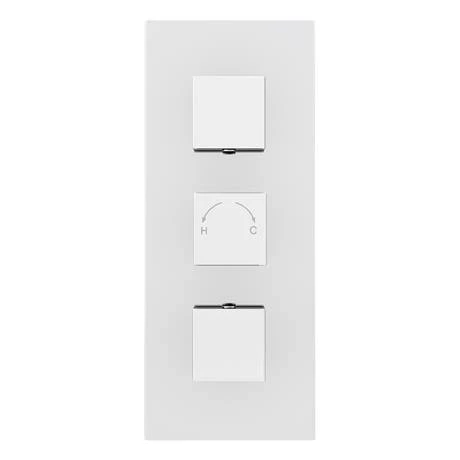

• Rectangular Faceplate
• Outlets: 2
• Style: Modern

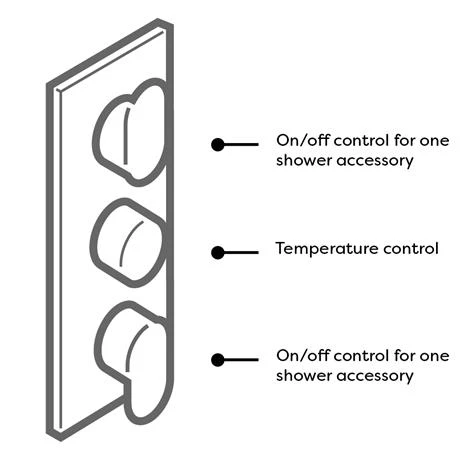

• Operates two points separately or simultaneously
• Water Pressure: 0.5 bar to 5 bar
• Suitable for modern pressurised plumbing systems.
• Can be fitted vertically or horizontally
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a correct booster pump is installed.

• Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

Shower Head with Arm Details

• Shower head dimensions: 200 x 200mm
• Shower arm length: 345mm
• Style: Modern
• Colour/Finish: Chrome
• Supplied with swivel joint and wall mounted square arm.
• Please note: Shower head chrome plated plastic, not metal.
• Installation of the arm requires rear access behind the wall.


Square Outlet Elbow inc. Parking Bracket, Flex & Handset Details

• Manufactured To The Highest Standard By Hudson Reed
• Rectangular Handset with Built in Outlet
• Suitable for all plumbing systems
• Shower flex –  Brass / Chrome plated
• Outlet Elbow with Parking Bracket – Brass / Chrome plated
• Rectangular handset – ABS plastic / Chrome plated

All measurements are approximate

Shower head and arm guaranteed for 2 years.

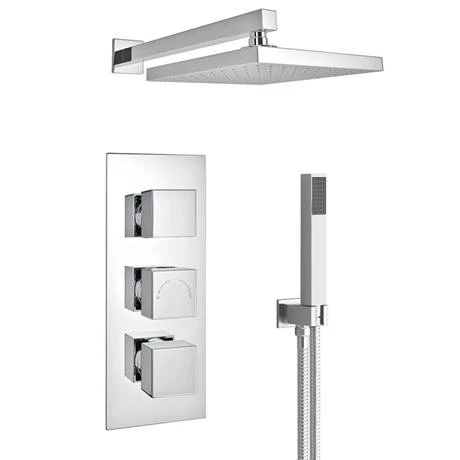

Comprises

(1) 200 x 200mm Square Head – Chrome
(1) Square Shower Arm – Chrome
(1) Square Outlet Elbow with Parking Bracket, Flex & Handset
(1) Milan Triple Square Concealed Thermostatic Shower Valve – Chrome

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
