Heritage’s elegant range of complete showers are precision engineered to provide a luxury showering experience. The shower valves are thermostatic so the water stays a consistent temperature even if the water pressure fluctuates.

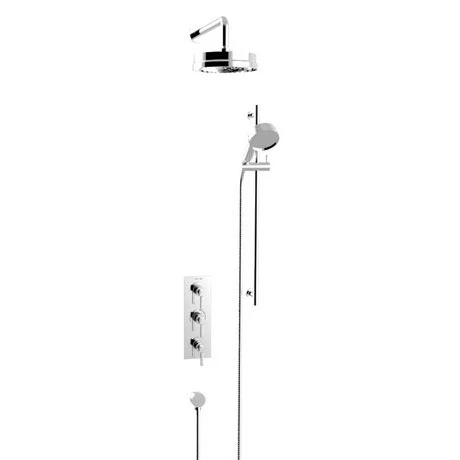

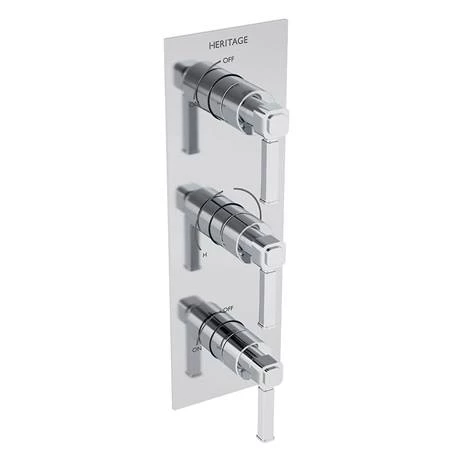

This classic Somersby shower features a flexible shower kit, 8″ fixed head and a dual control thermostatic shower valve. The sleek elegance and timeless style makes it ideal for both traditional and contemporary bathrooms. Available in chrome and quality assured by a 5 year guarantee.
Product Details
- Brand: Heritage Bathrooms
- Product Code: SSOBDUAL03
- Finish: Chrome
- Valve Type: Thermostatic
- Working Pressure Range: 0.2 – 5.0 bar
- Extra large 8″ shower rose
- Deluxe 4″ handset
- Construction: Body is of brass construction
- Valve Type: Ceramic Disc Valve
- Supply: Suitable for all plumbing systems, preferably balanced. The inlet hot water must be at least 10% above the required blend temperature
- Inlet Connections: 15mm Compression Connections
- Chrome plated to BS EN 248
- Suitable for cavities between 45-75mm
- Minimum cold water supply temperature is 5ºC
- Maximum hot water supply temperature is 80ºC
- Flow rate at 0.2bar (open outlet without flow regulators) is 9LPM
- Cartridge serviceable from the front
- Flexible shower kit includes riser rail, 1.5m shower hose & single function handset with rub clean nozzles
- Fixed shower kit includes arm and 152mm shower rose
5 Year guarantee
Flow Rates
0.2 Bar – (Handset) 4.3 l/m
0.5 Bar – (Handset) 8.1 l/m
1.0 Bar – (Handset) 12.3 l/m
2.0 Bar – (Handset) 18 l/m
3.0 Bar – (Handset) 22.8 l/m
5.0 Bar – (Handset) 29.5 l/m

Download Instructions
