Cruze Twin Shower Valve inc. Outlet Elbow, Handset & Ultra Thin Head with Vertical Arm

Upgrade your shower experience with the all singing, all dancing Cruze Twin Shower Valve, Outlet Elbow, Handset & Ultra Thin Head. A two outlet shower valve in shiny chrome allows you to divert water between the head and handset, giving you extra flexibility as you wash. Revel in the bliss of full body coverage with the luxurious circular rainfall shower head, or opt for a more targeted spray with the smaller tap. This concealed thermostatic shower valve puts you in total control, allowing you to set your favourite temperature easily for a tailored shower experience.

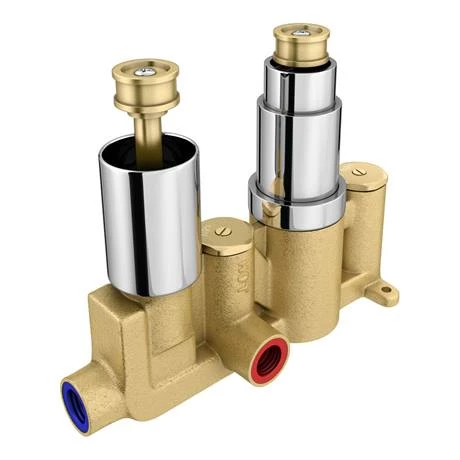

Shower Valve Details

• Height: 215mm
• Width: 120mm
• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Round
• Material: Brass Internals
• Thermostatically controlled

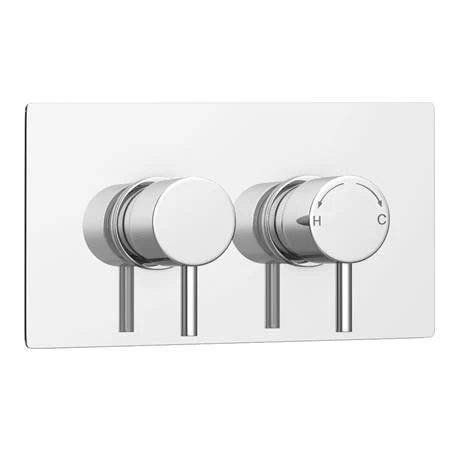

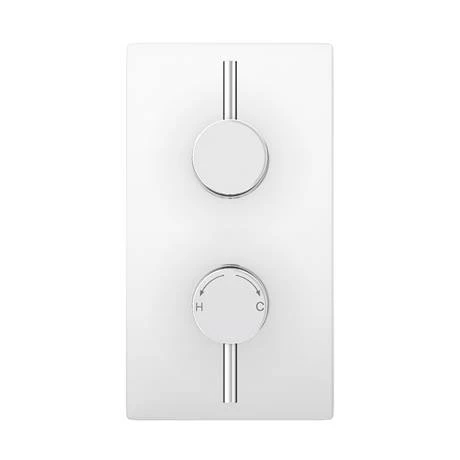

• Rectangular Faceplate
• Can be fitted vertically or horizontally
• Water Pressure: 0.5 bar to 5 bar

• Suitable for modern pressurised plumbing systems.

• Built-In Diverter
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.

• Should a pump be required we recommend a universal or negative head pump.

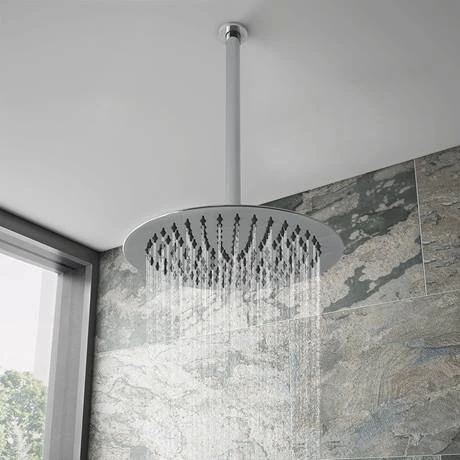

Shower Head Details

• Style: Modern
• Colour/Finish: Chrome Effect
• Material: Stainless Steel
• Diameter: 300mm
• Thickness/Profile: 3mm (excluding swivel joint)
• Pressure requirement 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Sleek design
• Rub clean nozzles makes this item easy to clean and maintain
• Supplied with swivel ball joint

Shower Arm Details

• Shower arm length: 300mm
• Type: Ceiling Shower Arm
• Style: Modern
• Shape: Round
• Colour/Finish: Polished Chrome
• Vertical mounted

Round Outlet Elbow with Parking Bracket, Flex & Handset Details

• Depth: 59mm
• Height: 226mm
• Width: 32mm
• Manufactured To The Highest Standards
• Round Handset with Built in Outlet
• 1.5m Shower flex –  Brass / Chrome plated
• Outlet Elbow with Parking Bracket – Brass / Chrome plated
• Handset – ABS plastic / Chrome plated
• Rust resistant hose
• Highly polished finish
• Pencil handset holder
• Silicone nozzles mean that any lime scale deposits can simply be rubbed away

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Pictures for illustrative purposes only.

All measurements are approximate

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
