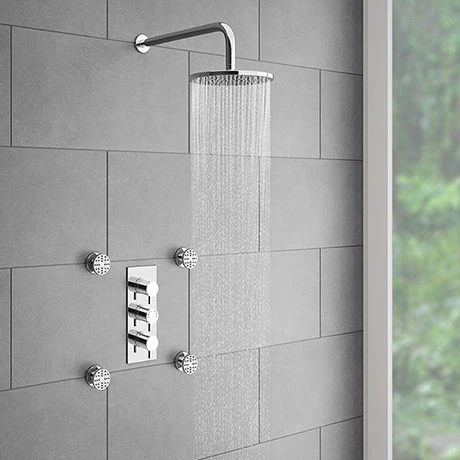

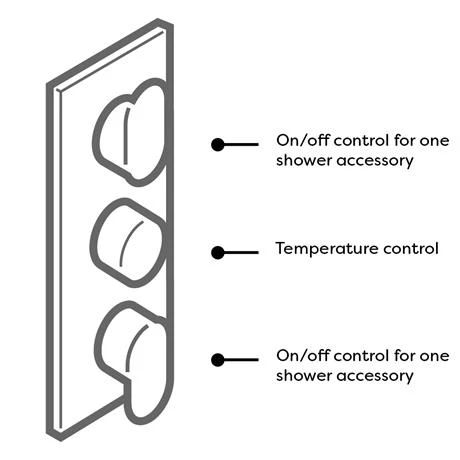

The stylish contemporary Cruze shower package, includes a triple concealed thermostatic shower valve, a 200mm round fixed shower head with wall mounted arm and 4 adjustable anti-limestone flat round body jets. Bring substantial elegance to the modern bathroom, the Cruze shower package offers thermostatic showering via three easy-to-operate controls. Separate controls for temperature and flow. Operates two shower accessories separately or simultaneously.

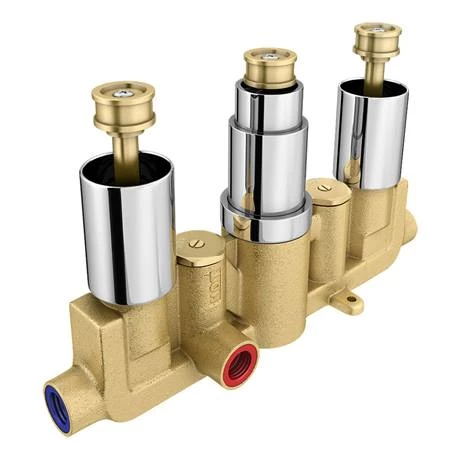

Shower Valve Details
- Width: 120mm
- Depth: 140mm
- Height: 265mm
- High Quality Design
- Finish: Polished Chrome
- Brass Internals
- Thermostatically controlled
- Valve Handles: Round
- Rectangular Faceplate
- Outlets: 2
- Style: Modern
- Operates two points separately or simultaneously
- Water Pressure: 0.5 bar to 5 bar
- Can be fitted vertically or horizontally
- Suitable for modern pressurised plumbing systems.
- Hot water temperature 55 to 85 Degrees
- Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
- Should a pump be required we recommend a universal or negative head pump
- Flow Rates:
- 0.5 bar – 9.6 L/M
- 1 bar – 14.1 L/M
- 2 bar – 20.5 L/M
- 3 bar – 24.8 L/M
- 4 bar – 28.3 L/M
- 5 bar – 32 L/M

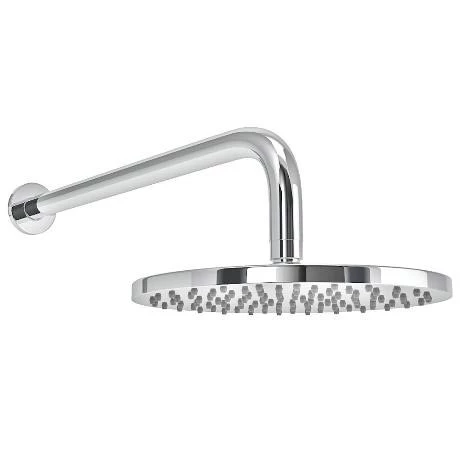

Shower Head Details
- Shower head dimensions: 200mm diameter
- Shower arm length: 345mm
- Style: Modern
- Colour/Finish: Chrome
- Water Pressure: 0.5 bar min to 3 bar max
- Supplied with swivel joint and wall mounted round arm.
- Shower head chrome plated plastic, not metal.
- Installation of the arm requires rear access behind the wall.

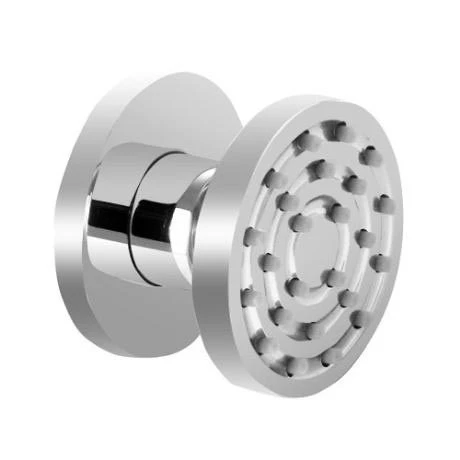

Body Jet Details
- Overall Size: D60 x W55 x H55mm approx
- Shroud ring: 55mm diameter
- Brass 1/2 inch BSP thread – 25mm long
- 24 rubber nozzles (12 functional)
- Colour/Finishes: Polished Chrome
- Material: Brass
- Product Type: Slim Round Body Jet
- Supplied with swivel joint
- Silicone nozzles mean that any limescale deposits can simply be rubbed away
All measurements are approximate
Images shown are for illustration purposes only
Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)
Shower head and arm guaranteed for 2 years.

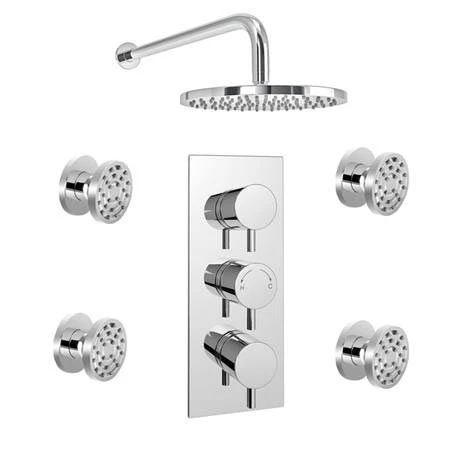

Comprises
(1) 200mm Round Head
(1) Round Shower Arm
(4) Slim Round Body Jet
(1) Triple Round Concealed Thermostatic Shower Valve
Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
