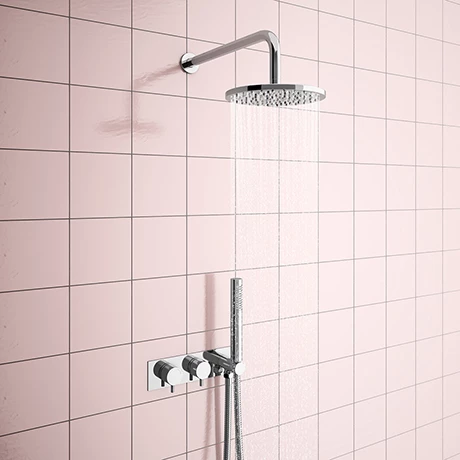

Cruze Round Shower System (200mm Fixed Head, Handset + Integrated Parking Bracket)

The Cruze modern concealed thermostatic control shower valve has been fitted with a handy shower handset. You can also be rest assured the clever thermostatic shower valve will always keep your water at a safe temperature. Features minimalist round handles this modern style shower valve comes with a matching chrome finish round shower head and is perfect for installing in a concealed arrangement. Valve diverts between two shower accessories.

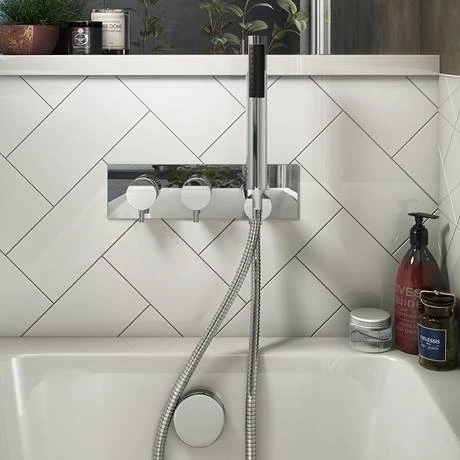

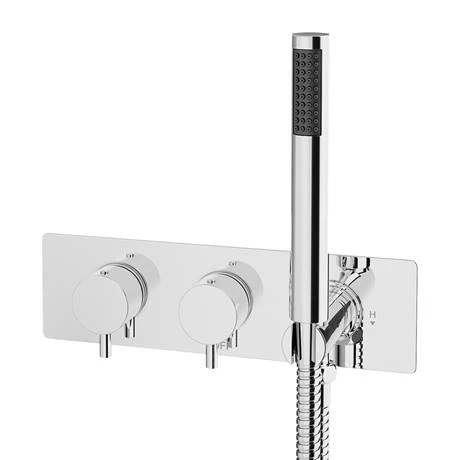

Shower Valve Details

• Width: 280mm
• Style: Modern
• Range: Cruze
• Type: Twin Concealed Shower valve with Diverter
• Valve Handles: Round
• Colour/Finish: Chrome Plated
• Material: Brass Internals
• Concealed fitting
• Wall mounted
• Integrated parking bracket
• 2 Outlets
• Min operating pressure: 0.5 bar
• Max operating pressure: 5 bar
• Includes 1.5m hose and shower handset
• Shower handset dimensions:
• Height: 210mm
• Width: 30mm
• Should a pump be required we recommend a universal or negative head pump

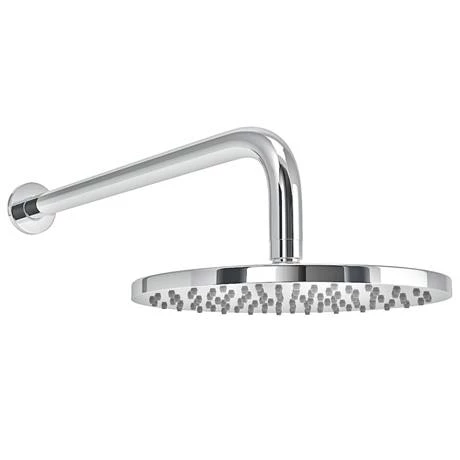

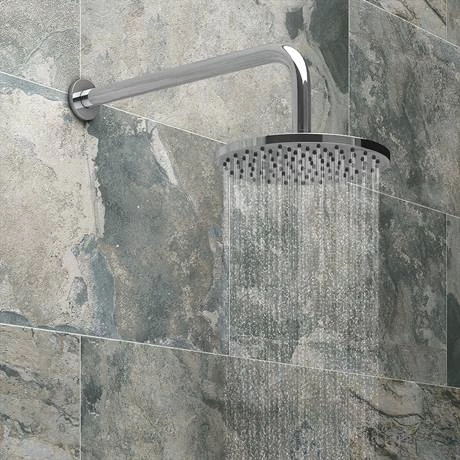

Fixed Shower Head with Arm Details

• Shower Head Dimensions: 200mm Diameter
• Shower Arm Length: 345mm
• Style: Modern
• Colour/Finish: Chrome
• Rainfall Effect
• Wall Mounted
• Eye-catching, chrome finish
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted round arm.
• Rub clean nozzles makes this item easy to clean and maintain
• Installation of the arm requires rear access behind the wall.
• Shower head chrome plated plastic, not metal.

All measurements are approximate

Images are for illustrative purposes only

Shower Valve Guarantee: 3 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)
Shower Head Guarantee: 2 Year

Comprises

(1) Round Wall Mounted Thermostatic Shower Valve (2 Outlets) with Round Lever Handles & Pencil Handset –  Chrome
(1) 200mm Round Head – Chrome
(1) 345mm Round Shower Arm – Chrome

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
