Cruze Modern Shower Package (Fixed Shower Head + Overflow Bath Filler)

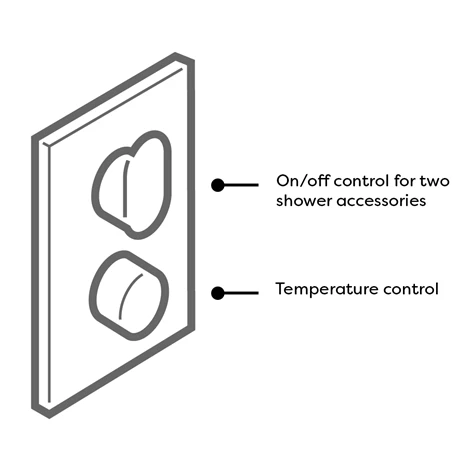

The minimalist Cruze shower package brings substantial elegance to the modern bathroom range, features a stylish concealed thermostatic valve with diverter which offers thermostatic showering via two easy-to-operate controls for temperature and flow.

Diverts between two shower accessories: fixed head and overflow bath filler.

Shower Valve Details

• Height: 215mm
• Width: 120mm
• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Round

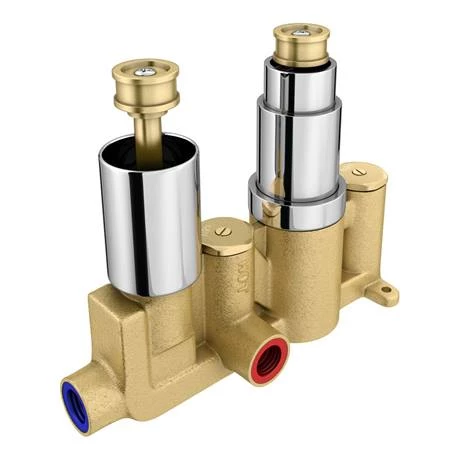

• Brass Internals
• Thermostatically controlled
• Rectangular Faceplate
• Can be fitted vertically or horizontally
• Outlets: 2
• Built-In Diverter
• Water Pressure: 0.5 bar to 5 bar
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

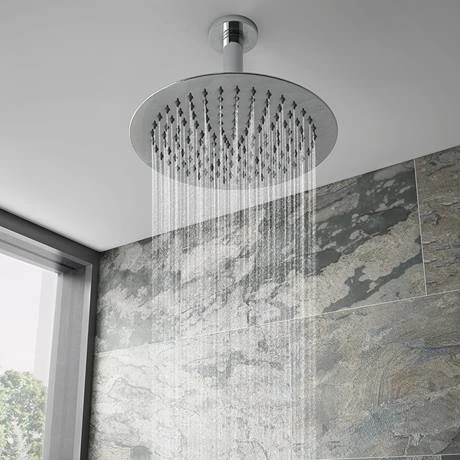

Shower Head + Arm Details

• Style: Modern
• Colour/Finish: Chrome Effect
• Material: Stainless Steel
• Diameter: 300mm
• Thickness/Profile: 3mm (excluding swivel joint)
• Pressure requirement 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Sleek design
• Rub clean nozzles makes this item easy to clean and maintain
• Supplied with swivel ball joint
• Shower arm length: 165mm
• Type: Ceiling Mounted
• Shape: Round

Round Slimline Freeflow Bath Filler Details

• Finish: Chrome
• Product Type: Freeflow Bath Filler and Overflow
• Click Clack Waste
• Standards: Manufactured in accordance with EN200
• Requirement – Suitable for all plumbing systems. Suitable for baths up to 18mm thick
• Bath Filler Option – connects to hot and cold water supply.

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

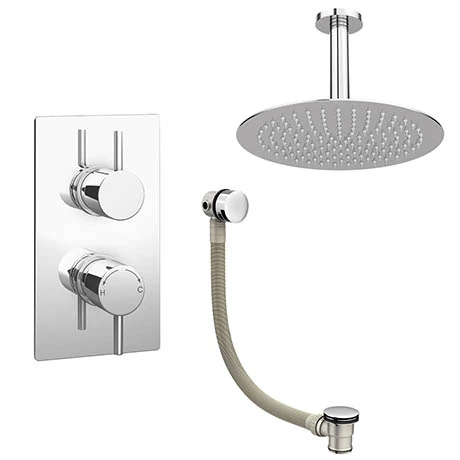

Comprises

(1) Twin Concealed Shower Valve with Built-In Diverter
(1) Cruze Ultra Thin Round Shower Head with Short Vertical Arm – 300mm
(1) Round Slimline Freeflow Bath Filler

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
