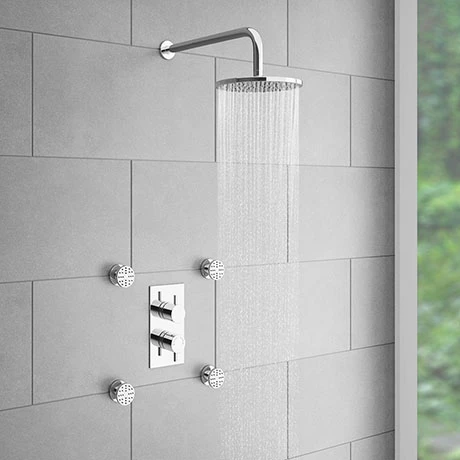

Cruze Concealed Thermostatic Valve with Diverter, Fixed Shower Head + 4 Body Jets

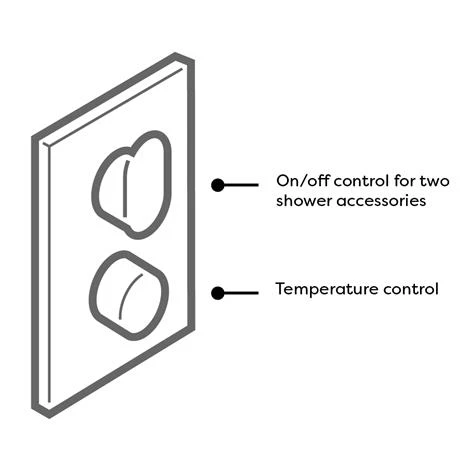

The stylish Cruze shower package, includes a concealed thermostatic shower valve with diverter, round fixed shower head & 4 body jets. This shower pack will compliment any modern bathroom suite, offers thermostatic showering via two easy-to-operate controls for temperature and flow. This shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail. Diverts between two shower accessories: fixed head/body jets.

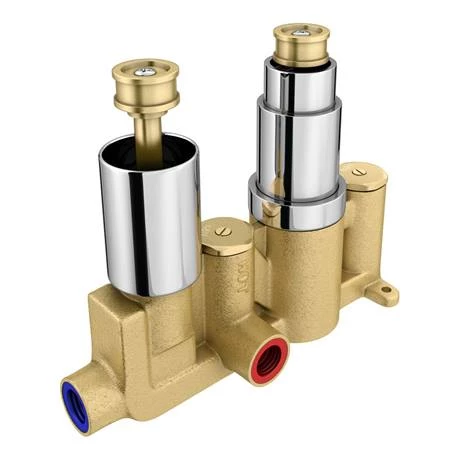

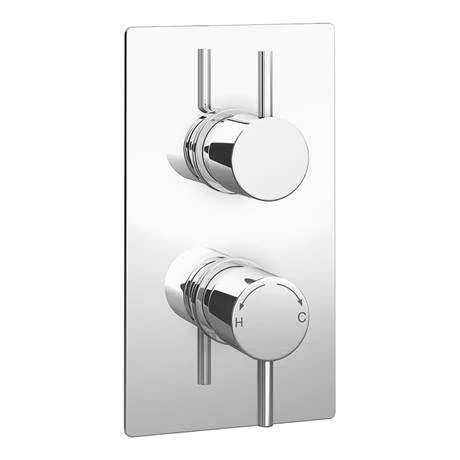

Shower Valve Details

• Height: 215mm
• Width: 120mm
• Depth: 140mm
• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Round
• Brass Internals
• Thermostatically controlled
• Water Pressure: 0.5 bar min to 3 bar max
• Rectangular Faceplate
• Built-In Diverter

• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.

• Should a pump be required we recommend a universal or negative head pump

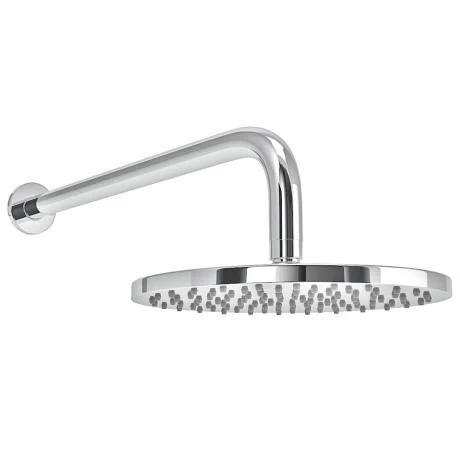

Shower Head Details

• Shower head dimensions: 200mm diameter
• Shower arm length: 345mm
• Style: Modern
• Colour/Finish: Chrome
• Water Pressure: 0.5 bar min to 3 bar max
• Supplied with swivel joint and wall mounted round arm.
• Shower head chrome plated plastic, not metal.
• Installation of the arm requires rear access behind the wall.

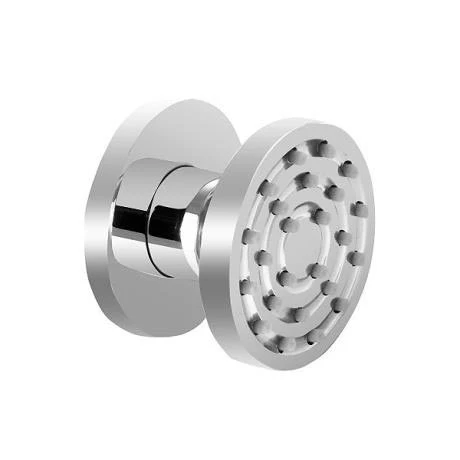

Body Jet Details

• Overall Size: D60 x W55 x H55mm approx
• Shroud ring: 55mm diameter
• Brass 1/2 inch BSP thread – 25mm long
• 24 rubber nozzles (12 functional)
• Colour/Finishes: Polished Chrome

• Material: Brass
• Product Type: Slim Round Body Jet
• Supplied with swivel joint
• Silicone nozzles mean that any limescale deposits can simply be rubbed away

All measurements are approximate

Comprises

(1) Cruze Twin Square Concealed Shower Valve with Diverter – Chrome
(1) 200mm Round Head
(1) Round Shower Arm
(4) Body Jets

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
