Cruze 2 Outlet Shower System (Fixed Shower Head + Overflow Bath Filler)

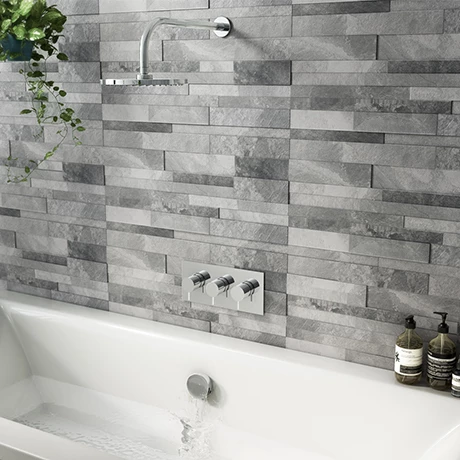

The minimalist Cruze shower system features a triple concealed thermostatic shower valve with stylish round handles, wall mounted shower head and overflow bath filler click clack waste brings substantial elegance to the modern bathroom.

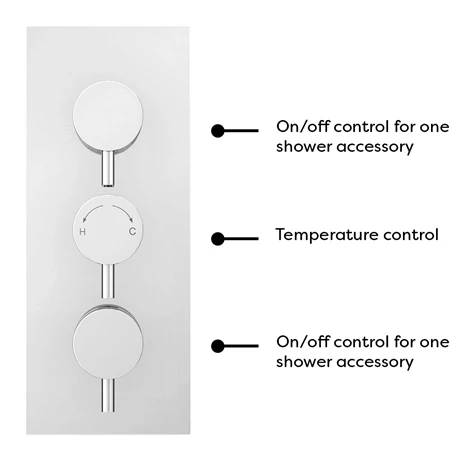

This stylish concealed thermostatic shower system offers thermostatic showering via three easy-to-operate controls. Separate controls for temperature and flow. Operates two outlets separately or simultaneously. (fixed head and overflow bath filler)

Shower Valve Details

• Width: 120mm
• Depth: 140mm
• Height: 265mm
• High Quality Design
• Finish: Polished Chrome
• Brass Internals
• Thermostatically controlled
• Valve Handles: Round
• Rectangular Faceplate
• Outlets: 2
• Style: Modern
• Operates two points separately or simultaneously
• Water Pressure: 0.5 bar to 5 bar
• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

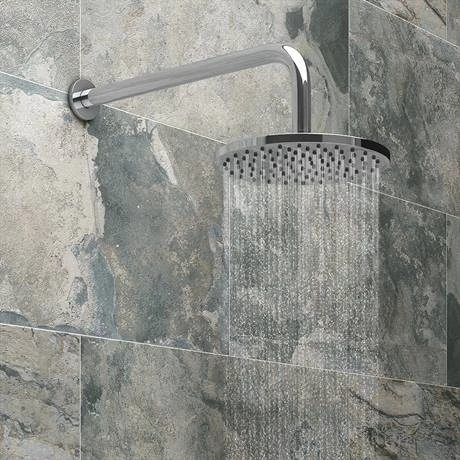

Shower Head + Arm Details

• Shower head dimensions: 200mm diameter
• Shower arm length: 345mm
• Style: Modern
• Shape: Round
• Colour/Finish: Chrome
• Water Pressure: 0.5 bar min to 3 bar max
• Supplied with swivel joint and wall mounted round arm.
• Shower head chrome plated plastic, not metal.
• Installation of the arm requires rear access behind the wall.

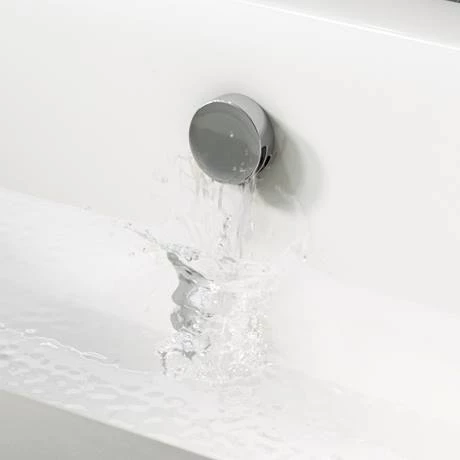

Round Slimline Freeflow Bath Filler Waste Details

• Style: Modern
• Shape: Round
• Colour/Finish: Chrome
• Product Type: Freeflow Bath Filler and Overflow
• Click Clack Bath Waste
• Requirement – Suitable for all plumbing systems. Suitable for baths up to 18mm thick
• Bath Filler Option – connects to hot and cold water supply.
• Bath filler must be fitted on a flat edge.

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

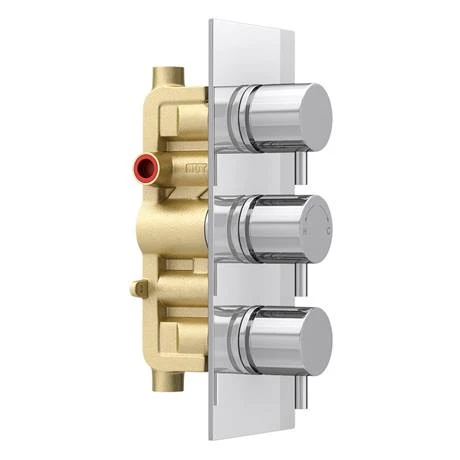

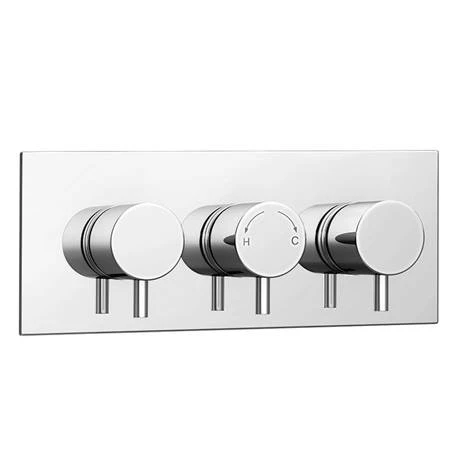

(1) Triple Round Concealed Thermostatic Shower Valve
(1) 200mm Round Head
(1) 345mm Round Shower Arm
(1) Round Slimline Freeflow Bath Filler Click Clack Waste

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
