Chatsworth 1928 Triple Exposed Thermostatic Shower (inc. Valve, Elbow, Handset + Fixed Shower Head)

Make showering a luxurious experience with this Chatsworth 1928 Thermostatic Shower. This chrome and brass set comes complete with an elegant valve, taps, and elbow that will add a period style to your space. The traditional thermostatic shower comes with modern functionality – you can operate the handset and fixed shower head separately or simultaneously. AirTec technology boosts the flow and produces a spa like bubble effect, all while reducing water consumption. Create your dream shower by setting the temperature and pressure exactly as you like using the classic lever and cross handles on this exposed shower valve.

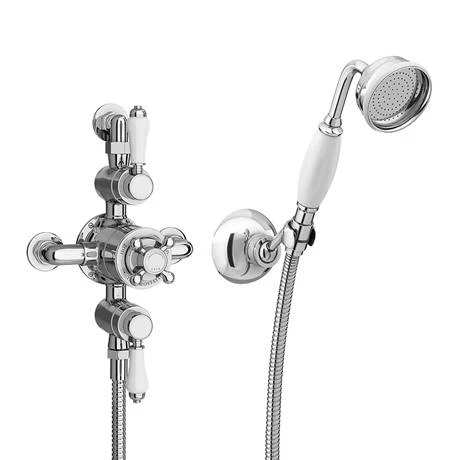

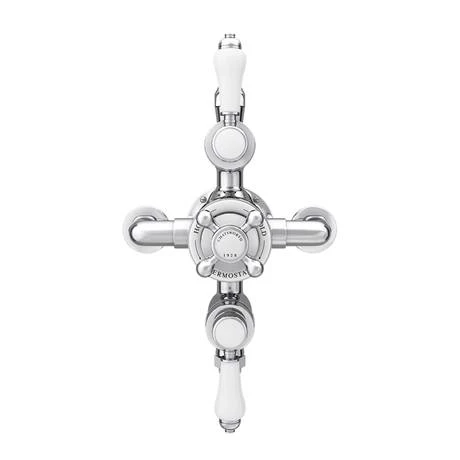

Shower Valve Details

• Height: 280mm
• Type: Exposed Valve
• Style: Traditional
• Colour/Finish: Chrome
• Manufactured from highly durable brass
• Water Pressure: 0.5 bar to 5 bar
• Wall mounted
• Thermostatically controlled
• Classic lever and cross head handles
• Separate controls for temperature and flow.
• Operates two shower accessories separately or simultaneously – 2 Outlets
• Shower valves pipe centres fixed at 150mm
• Outlet: 15 mm (1/2″ BSP) / 18mm (3/4″ BSP) (supplied with adaptor)
• Supplied with Back to wall return shower elbow
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump

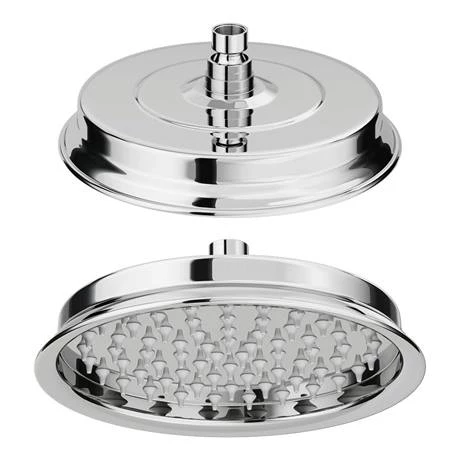

Shower Head and Arm Details

• Head Diameter: 225mm
• Arm length: 345mm
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Shape: Round
• Style: Contemporary
• Wall Mounted
• Pressure requirement 0.5 bar minimum
• Silicone nozzles mean that any limescale deposits can simply be rubbed away
• AirTec Technology:
• Air suction spray boost
• Reduces water use
• Creates air bubbles in water for a luxury shower

Shower Handset Details

• Width: 70mm
• Height: 230mm
• Traditional design
• Colour/Finish: Polished Chrome & White Ceramic
• Material: Brass Internals
• Pressure: LP1 – 0.1 Bar Minimum
• ShockProof silicone ring to protect the shower head from shock damage if dropped

Holder Details

• Height: 67mm
• Length: 100mm
• Chrome Plated
• Mirror Finish
• Manufactured from highly durable brass
• Comes complete with screw and wall plug

Shower Hose Details

• Finish: Polished Chrome
• Brass Internals
• Quality Heavy Design
• Bore size: 8mm
• 1/2″ BSP connections
• Double lock

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Comprises

(1) Chatsworth 1928 Traditional Triple Exposed Shower Valve

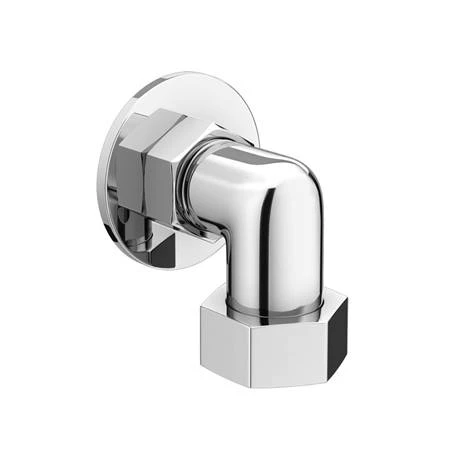

(1) Back To Wall Return Shower Elbow
(1) Traditional 8″ AirTec Shower Head
(1) Chrome 345mm Round Wall Mounted Shower Arm
(1) Traditional Shower Handset
(1) 1.5m Chrome Shower Hose
(1) Adjustable Chrome Wall Mounted Shower Handset Holder

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
