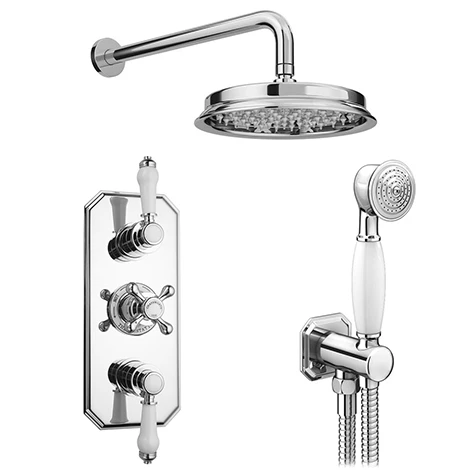

Chatsworth 1928 Traditional Shower with Concealed Valve, 8″ Head + Handset

The Chatsworth 1928 polished chrome concealed thermostatic shower system brings substantial elegance to the modern bathroom. The concealed triple shower valve offers thermostatic showering via three easy-to-operate controls. Operates two outlets separately or simultaneously.

Concealed valve comes supplied with a matching wall mounted 8 inch rose shower head and shower handset with parking bracket, hose.

The classic style of this polished chrome concealed shower valve adds a touch of sophistication and elegance to any bathroom. Manufactured using high quality materials, our range of traditional shower valves will look outstanding in any bathroom.

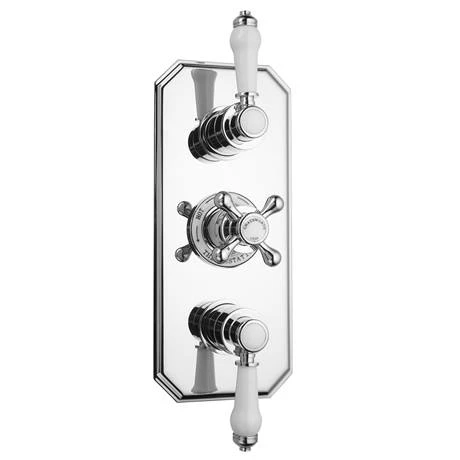

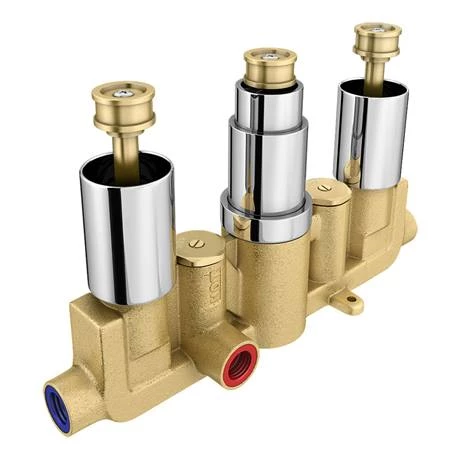

Shower Valve Details

• Height: 280mm
• Width: 130mm
• Type: Triple Concealed Valve
• Range: Chatsworth 1928
• Style: Traditional
• Colour/Finish: White/Chrome
• Manufactured from highly durable brass
• Water Pressure: 0.5 bar to 5 bar
• Wall mounted
• Thermostatically controlled
• Classic face plate, lever and cross head handles
• Separate controls for temperature and flow.
• Operates two outlets separately or simultaneously – 2 Outlets
• Suitable for modern pressurised plumbing systems.
• Can be fitted vertically or horizontally.
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M
• Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Shower Head Details

• Head Diameter: 225mm
• Arm length: 345mm
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Shape: Round
• Style: Contemporary
• Wall Mounted
• Pressure requirement 0.5 bar minimum
• Silicone nozzles mean that any limescale deposits can simply be rubbed away
• AirTec Technology:
• Air suction spray boost
• Reduces water use
• Creates air bubbles in water for a luxury shower
• Guarantee: 2 Year

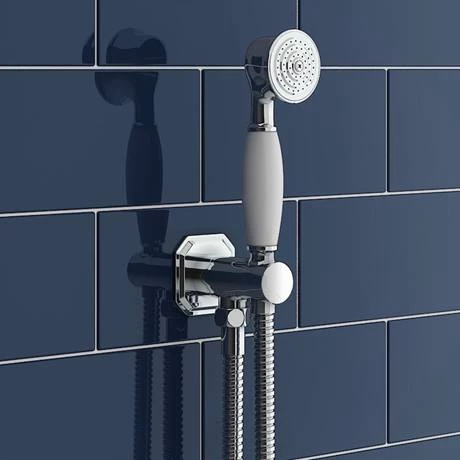

Shower Handset Details

• Height: 216mm
• Width: 50mm
• Depth: 98mm
• Finish: Polished Chrome
• Material: Brass Internals
• Style: Traditional
• 1/2″ BSP connections
• Outlet elbow covers unsightly fittings
• Suitable for use with concealed shower valves
• Chrome 1.5m flexible hose
• Wall mounted
• Suitable for water pressure systems of 0.2 bar and above
• Installation requires rear access behind the wall.
• Guarantee: 5 Year


All measurements are approximate

Product images are for illustrative purposes only and may differ from the actual product.

Comprises

(1) Traditional 8″ Apron Rose Shower Head
(1) Wall Mounted Arm
(1) Triple Concealed Shower Valve
(1) Outlet Elbow with Parking Bracket, Flex & Handset

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
