Take a relaxing shower at just the push of a button with the Chatsworth 1928 Traditional Shower Valve Pack. This traditional thermostatic shower has a concealed push button operated thermostatic valve for easy on and off functions. The pack also includes a rainfall shower head for a spa like experience and matching handset – both made from durable brass with a polished chrome finish. A gloss white ceramic section gives the handset a luxurious feel. Even better, you can hide the pipes behind the wall for a clutter free look.

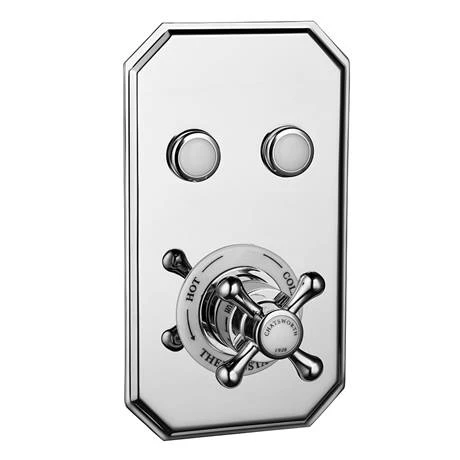

Shower Valve Details
- Height: 215mm
- Width: 120mm
- Depth: 152mm
- Type: Concealed Valve
- Style: Traditional
- Colour/Finish: Chrome
- Manufactured from highly durable brass
- Easy to use push on/off flow controls provide instant start/stop activation
- Each button is used for a dedicated outlet such as a shower head, body jets or hand held shower
- Water Pressure: 0.5 bar to 5 bar
- Wall mounted
- Controls two outlets
- Thermostatically controlled
- Operates two shower accessories separately or simultaneously – 2 Outlets
- Hot water temperature 55 to 85 Degrees
- Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
- Should a pump be required we recommend a universal or negative head pump.

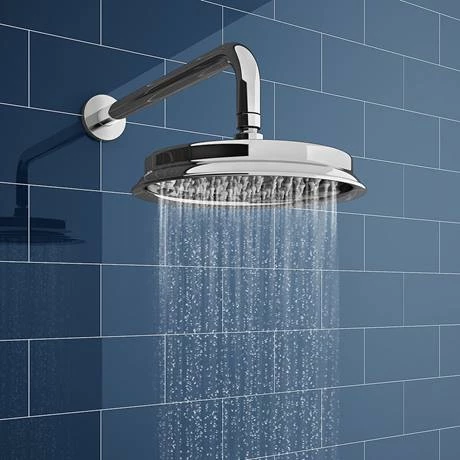

Shower Head + Wall Mounted Arm Details
- Head Diameter: 225mm
- Arm length: 345mm
- Colour/Finish: Polished Chrome
- Material: Brass Internals
- Shape: Round
- Style: Contemporary
- Wall Mounted
- Pressure requirement 0.5 bar minimum
- Silicone nozzles mean that any limescale deposits can simply be rubbed away
- AirTec Technology:
- Air suction spray boost
- Reduces water use
- Creates air bubbles in water for a luxury shower
- Installation of the arm requires rear access behind the wall.

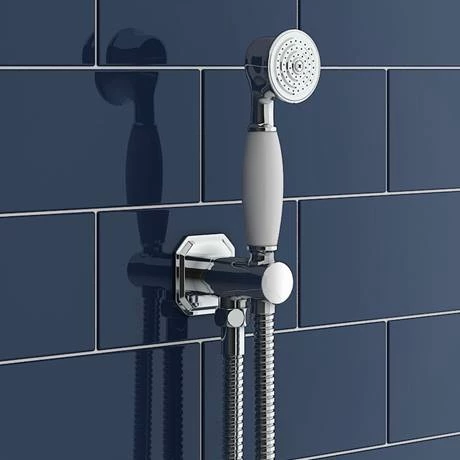

Shower Handset Details
- Height: 216mm
- Width: 50mm
- Depth: 98mm
- Finish: Polished Chrome
- Material: Brass Internals
- Style: Traditional
- 1/2″ BSP connections
- Outlet elbow covers unsightly fittings
- Suitable for use with concealed shower valves
- Chrome 1.5m flexible hose
- Wall mounted
- Suitable for water pressure systems of 0.2 bar and above
Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)
All measurements are approximate
Images are for illustrative purposes only

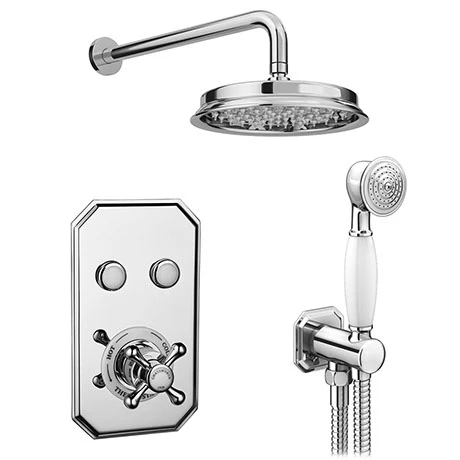

Comprises
(1) Chatsworth Traditional 8″ AirTec Shower Head & Wall Mounted Arm
(1) Chatsworth Traditional Outlet Elbow with Parking Bracket, Flex & Handset
(1) Chatsworth 1928 Traditional Two Outlet Push-Button Shower Valve
Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.

Download Instructions
