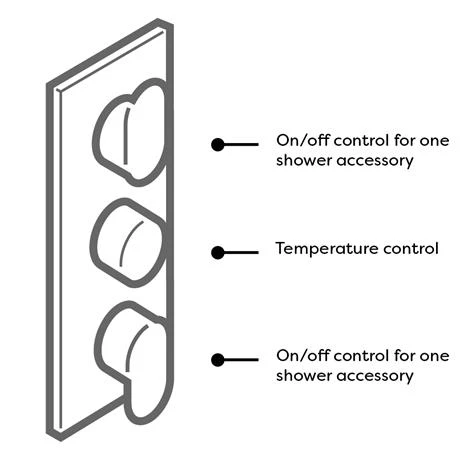

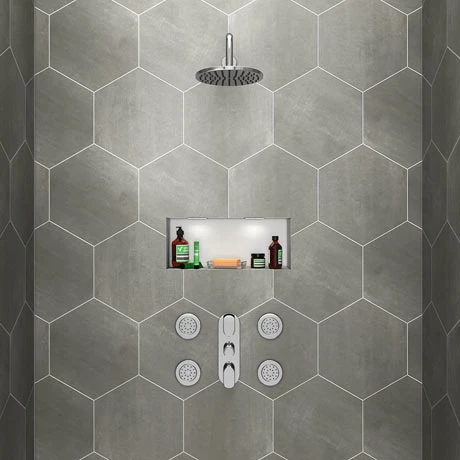

The stylish Bosa shower package, includes a concealed thermostatic shower valve, round fixed shower head & 4 round body jets. This shower pack will compliment any modern bathroom suite, offers thermostatic showering three easy-to-operate controls. Separate controls for temperature and flow. Operates two shower accessories separately or simultaneously.

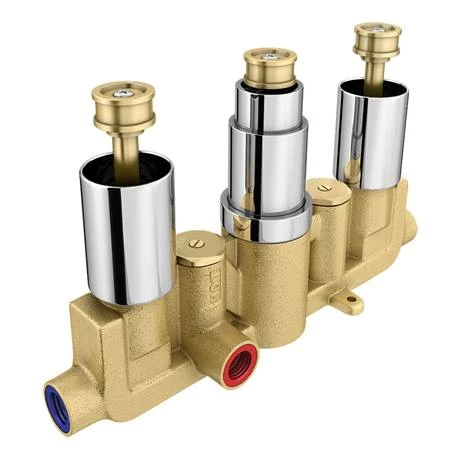

Shower Valve Details
- Height: 260mm
- Width: 80mm
- Type: Concealed Shower Valve
- Style: Modern
- Colour/Finish: Polished Chrome
- Brass Internals
- Thermostatically controlled
- Round Lever Handles
- Wall Mounted
- Water Pressure: 0.5 bar min to 3 bar max
- Suitable for modern pressurised plumbing systems.
- Operates two points separately or simultaneously – 2 Outlets
- Hot water temperature 55 to 85 Degrees
- Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
- Should a pump be required we recommend a universal or negative head pump.
Body Jet Details
- Overall Size: D64 x W55 x H55mm approx
- Shroud ring: 55mm diameter
- Brass 1/2 inch BSP thread: 25mm long
- 24 rubber nozzles (12 functional)
- Colour/Finishes: Polished Chrome
- Material: Brass
- Product Type: Slim Round Body Jet
- Supplied with swivel joint
- Silicone nozzles mean that any limescale deposits can simply be rubbed away
- Requirement – Suitable for all plumbing systems

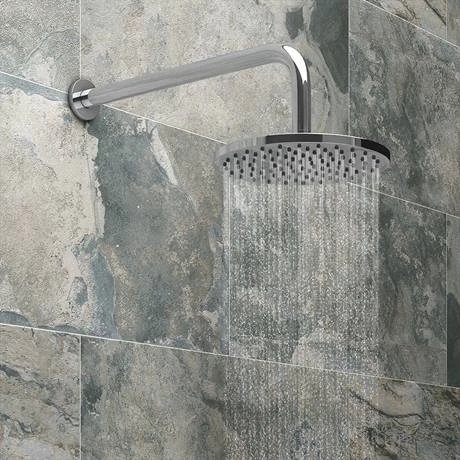

Shower Head + Arm Details
- Shower head dimensions: 200mm diameter
- Shower arm length: 345mm
- Style: Modern
- Colour/Finish: Chrome
- Water Pressure: 0.5 bar min to 3 bar max
- Supplied with swivel joint and wall mounted round arm.
- Shower head chrome plated plastic, not metal.
- Installation of the arm requires rear access behind the wall.
Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)
Shower head and arm guaranteed for 2 years.
Pictures for illustrative purposes only.
All measurements are approximate

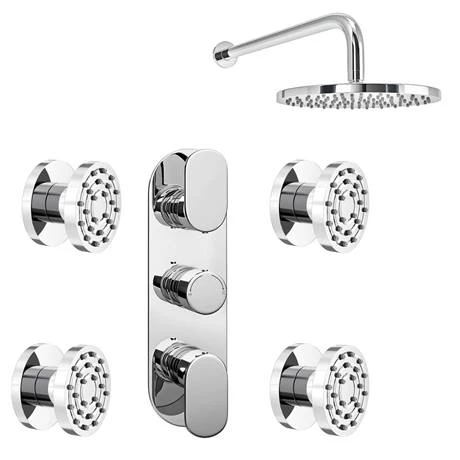

Comprises
(1) Bosa Modern Triple Concealed Thermostatic Shower Valve
(1) 200mm Round Head
(1) Round Shower Arm
(4) Round Swivel Body Jet
Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
