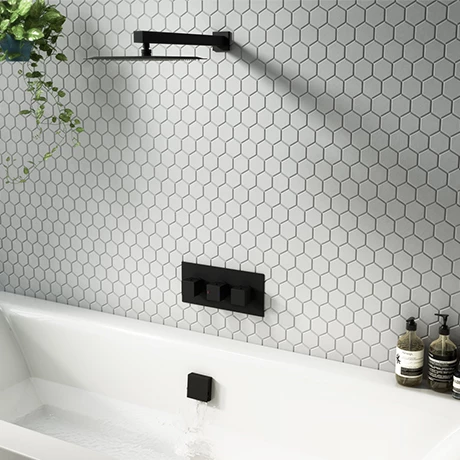

Arezzo Square Matt Black 2 Outlet Shower System (Fixed Shower Head + Overflow Bath Filler)

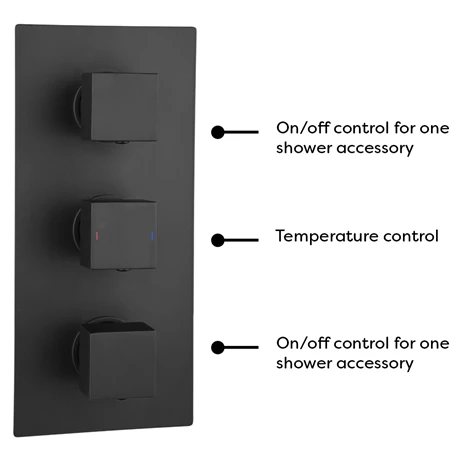

This stylish concealed thermostatic shower system offers thermostatic showering via three easy-to-operate controls. Separate controls for temperature and flow. Operates two outlets separately or simultaneously. (fixed head and overflow bath filler)

Shower Valve Details

• Width: 120mm
• Depth: 140mm
• Height: 265mm
• High Quality Design
• Colour/Finish: Matt Black
• Material: Brass Internals
• Thermostatically controlled
• Valve Handles: Square
• Rectangular Faceplate
• Outlets: 2
• Style: Modern
• Operates two points separately or simultaneously
• Water Pressure: 0.5 bar to 5 bar
• Suitable for modern pressurised plumbing systems.
• Can be fitted vertically or horizontally
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

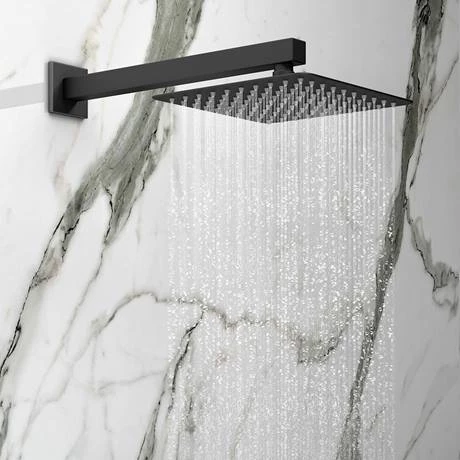

Shower Head + Arm Details

• Shower Head Dimensions: 200 x 200mm
• Shower Arm Length: 335mm
• Style: Modern
• Colour/Finish: Matt Black
• Material: Stainless Steel
• Rainfall Effect
• Ultra-Thin Shower Head
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted square shower arm.
• Rub clean nozzles makes this item easy to clean and maintain

Square Slimline Freeflow Bath Filler Waste Details

• Length 620mm
• Shape: Square
• Colour: Matt Black
• Product Type: Freeflow Bath Filler Waste and Overflow
• With click clack waste
• Suitable for single and double ended baths
• Suitable for medium pressure systems of 0.5 bar and above
• Bath Filler Option – connects to hot and cold water supply,
• This bath filler must be fitted on a flat edge.

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

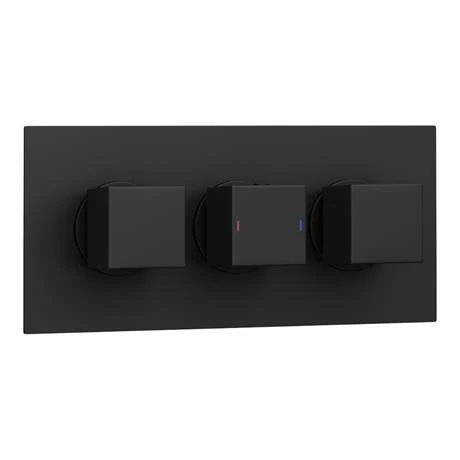

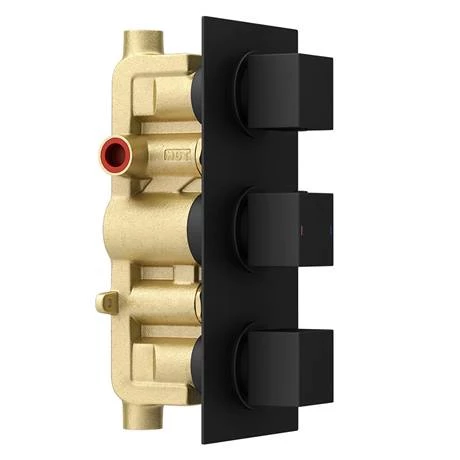

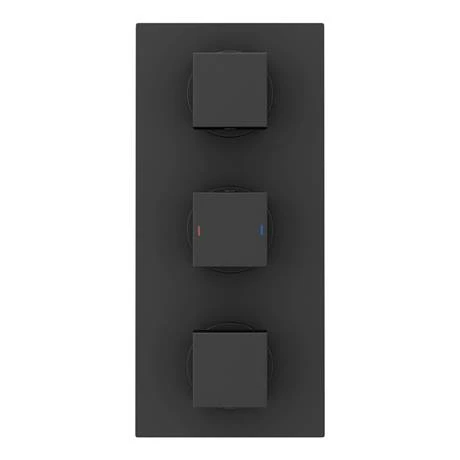

(1) Matt Black Triple Square Concealed Thermostatic Shower Valve
(1) 200 x 200mm Matt Black Ultra Thin Square Head
(1) Matt Black 335mm Square Shower Arm
(1) Matt Black Square Slimline Freeflow Bath Filler Click Clack Waste

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
