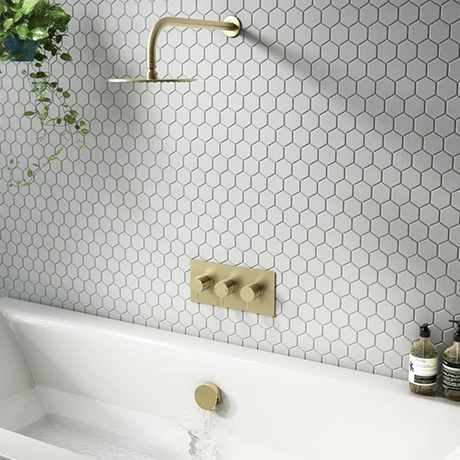

Arezzo Round Brushed Brass 2 Outlet Shower System (Fixed Shower Head + Overflow Bath Filler)

The eye-catching brushed brass Arezzo round shower system features a triple concealed thermostatic shower valve with stylish round handles, wall mounted shower head and overflow bath filler click clack waste brings substantial elegance to the modern bathroom.

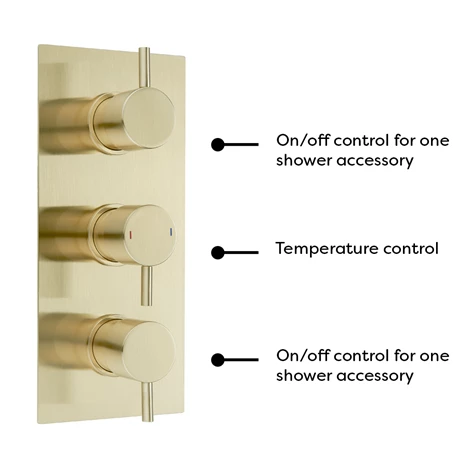

This stylish concealed thermostatic shower system offers thermostatic showering via three easy-to-operate controls. Separate controls for temperature and flow. Operates two outlets separately or simultaneously. (fixed head and overflow bath filler)

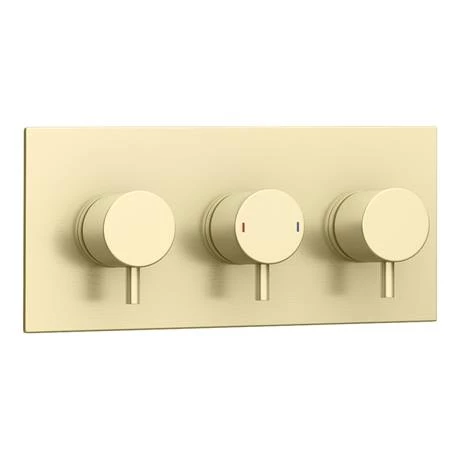

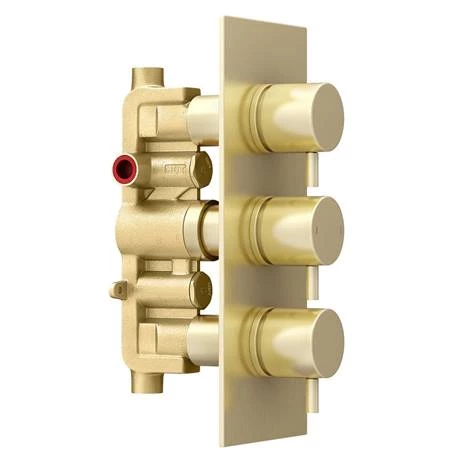

Shower Valve Details

• Width: 120mm
• Depth: 140mm
• Height: 265mm
• Style: Modern
• Colour/Finish: Brushed Brass
• Valve Handles: Round
• Solid Brass Internals
• Thermostatically controlled
• Thermostatic Cartridge
• Rectangular Faceplate
• Outlets: 2
• Operates two points separately or simultaneously
• Water Pressure: 0.5 bar to 5 bar
• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.
• Automatic shut off in the event of hot or cold water supply failure.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

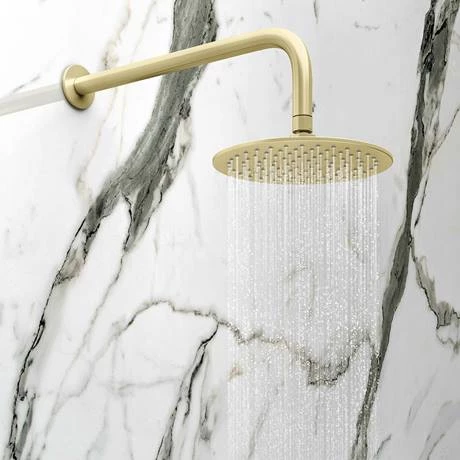

Shower Head + Arm Details

• Shower Head Dimensions: 200mm Diameter
• Shower Arm Length: 361mm
• Style: Modern
• Colour/Finish: Matt Brushed Brass
• Rainfall Effect
• Thin Shower Head
• Wall Mounted
• Eye-catching, brushed brass finish
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted round arm.
• Rub clean nozzles makes this item easy to clean and maintain
• 3 Year Guarantee

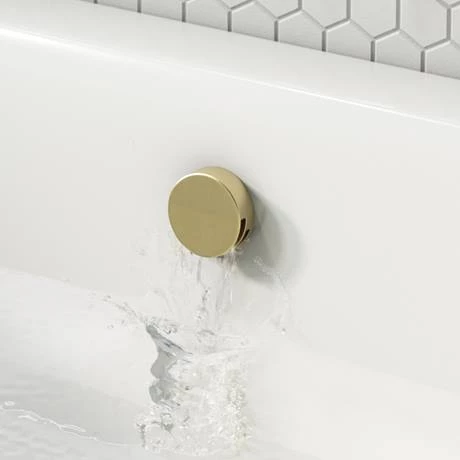

Round Slimline Freeflow Bath Filler Waste Details

• Length 620mm
• Shape: Round
• Colour: Brushed Brass
• Product Type: Freeflow Bath Filler Waste and Overflow
• With click clack waste
• Suitable for single and double ended baths
• Suitable for medium pressure systems of 0.5 bar and above
• Bath Filler Option – connects to hot and cold water supply,
• This bath filler must be fitted on a flat edge.

Shower valve Guarantee 3 Year, (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

(1) Brushed Brass Triple Round Concealed Thermostatic Shower Valve
(1) Brushed Brass 290mm Round Head
(1) Brushed Brass 361mm Round Shower Arm
(1) Brushed Brass Round Slimline Freeflow Bath Filler Click Clack Waste

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
