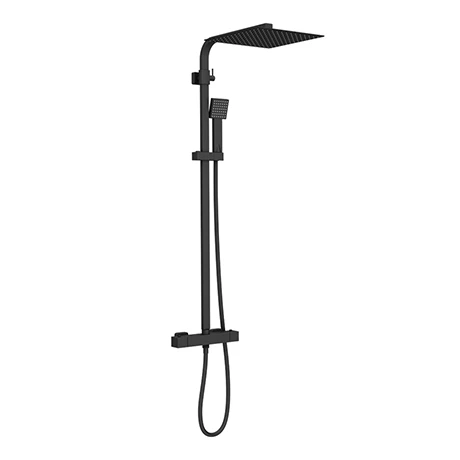

Arezzo Modern Square Thermostatic Shower (300 x 300mm Head – Matt Black)

• Rigid riser height: 800-1150mm
• Length of shower head arm: 340mm

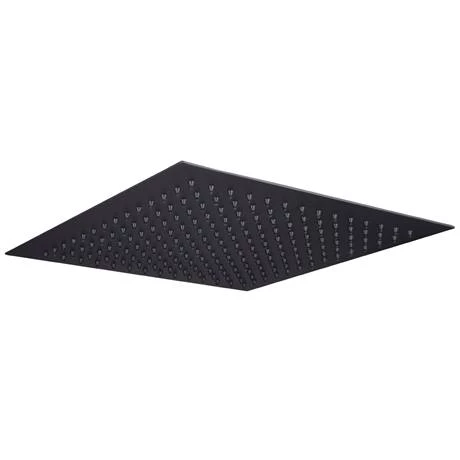

• Overhead shower head size: 300 x 300mm
• Finish: Matt Black
• Thermostatic shower, consisting of a square thermostatic bar valve and rigid riser kit with twin square shower heads
• Easy to divert water from handset to overhead drencher with inbuilt diverter
• High quality design and build
• Adjustable height
• Fixed Handset holder
• Latest ceramic disc technology
• Thermostatic shower system that cuts out the risk of scalding
• Working pressure between 0.5 to 5.0 bar
• Minimalistic shower system
• 1.5m Quality smooth flexible hose
• Easy to clean rubber jets which are included on both the main shower head and handset
• Incorporating diverter to control flow between overhead to hand shower
• One fixed head and one handset.

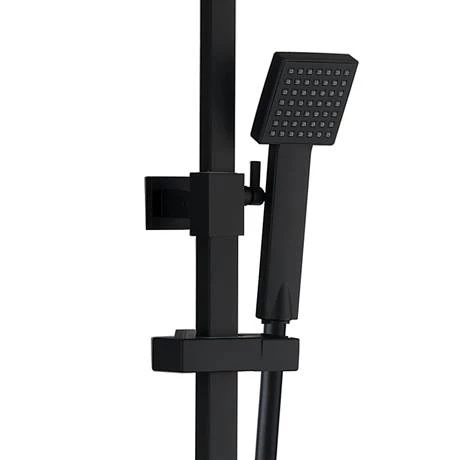

• Lightweight handset minimises risk of damage to bath and/or shower tray in case of accidental droppage.

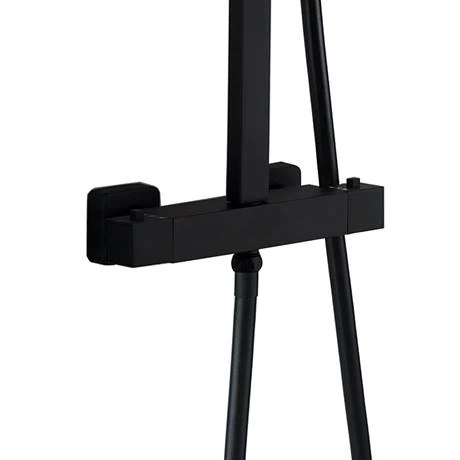

• Square thermostatic mixing valve of brass construction with built-in diverter and matt black finish.
• Rigid riser with matt black finish
• Easy installation
• 150mm between pipe inlet centres
• 15mm inlet feeds
• Hot water temperature 55 to 85 Degrees
• Should a pump be required we recommend a universal or negative head pump
• Pipe work feed is Hot Left and Cold Right
• Certain parts are plastic, not metal
• Flow Rates:
• 0.5 Bar – 6.5L/M
• 1.0 Bar – 9.5L/M
• 2.0 Bar – 14L/M
• 3.0 Bar – 17L/M
• 4.0 Bar – 20L/M
• 5.0 Bar – 22.5L/M

Please Note: During installation, please protect the connection parts of the shower with a soft material such as cloth, or use rubber lined grips, before tightening.

Images are for illustrative purposes only

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
