Arezzo Modern Round Thermostatic Shower – Matt Black

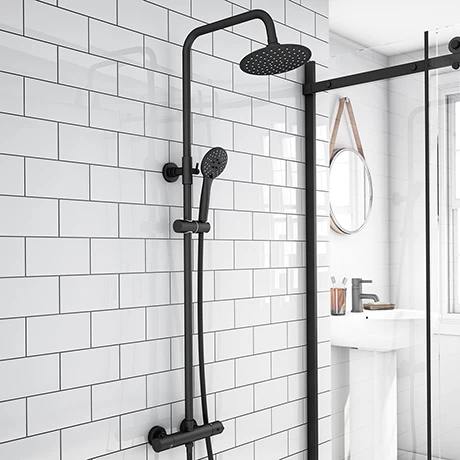

Create a statement shower in your wet room with this minimalist Arezzo Modern Round Thermostatic Shower. A modern design with superior functionality, the matt black powder coating of this round shower brings a bold look to your bathroom. This clever thermostatic mixer shower allows you to control water temperature and maintain it consistently avoiding any frustrating fluctuations. You can swiftly divert the flow between the fixed overhead drencher and the practical handset, which has an adjustable height and is lightweight to minimise the damage risk if dropped. To top it off, the sleek rainfall shower head of this modern black shower recreates a luxurious spa like experience.

Product Details

• Rigid riser height: 850-1150mm
• Length of shower head arm: 340mm

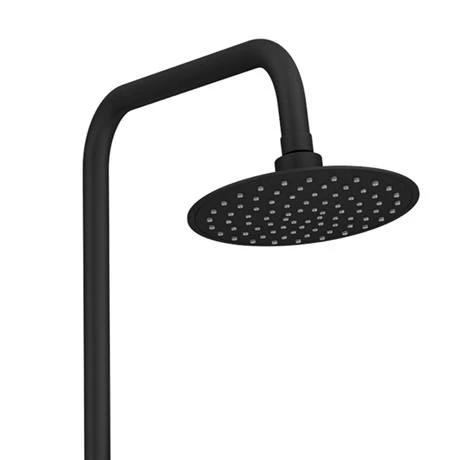

• Overhead shower head size: 195mm Diameter
• Finish: Powder Coating Matt Black

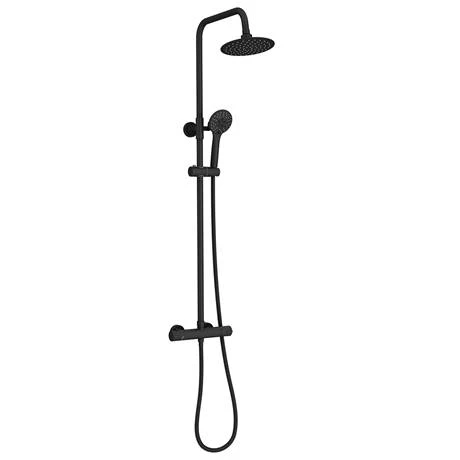

• Thermostatic shower, consisting of a round thermostatic bar valve and rigid riser kit with twin round shower heads
• Easy to divert water from handset to overhead drencher with in-built diverter
• High quality design and build
• Adjustable height
• Fixed Handset holder
• Latest ceramic disc technology
• Thermostatic shower system that cuts out the risk of scalding
• Working pressure between 0.5 to 5.0 bar
• Minimalistic shower system
• 1.5m Quality flexible hose
• Easy to clean rubber jets which are included on both the main shower head and handset
• Incorporating diverter to control flow between overhead to hand shower

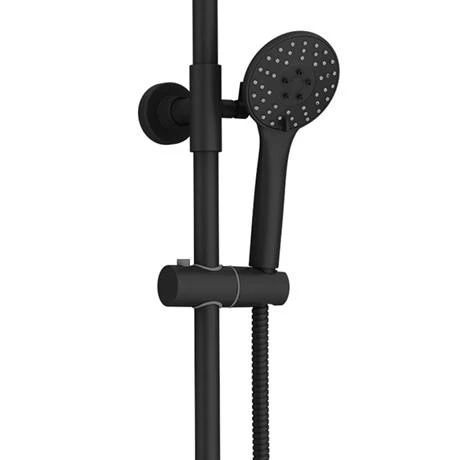

• One fixed head and one multi-function handset.
• Lightweight handset minimises risk of damage to bath and/or shower tray in case of accidental droppage.

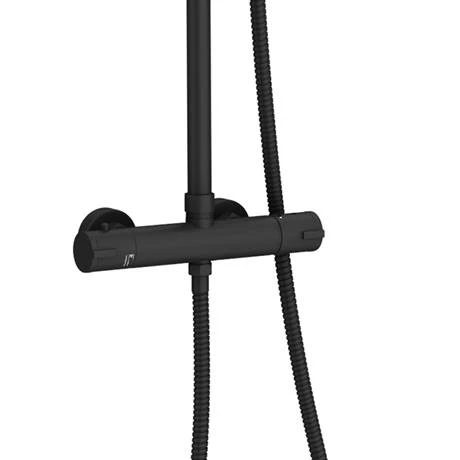

• Round thermostatic mixing valve of brass construction with built-in diverter and matt black finish.
• Rigid riser with matt black finish
• Easy installation
• 150mm between pipe inlet centres
• 15mm inlet feeds
• Hot water temperature 55 to 85 Degrees
• Certain parts are plastic, not metal

• Should a pump be required we recommend a universal or negative head pump
• Flow Rates:
• 0.5 Bar – 8.3L/M
• 1.0 Bar – 12.2L/M
• 2.0 Bar – 17.5L/M
• 3.0 Bar – 21.8L/M
• 4.0 Bar – 25.2L/M
• 5.0 Bar – 28.1L/M


Please Note: During installation, please protect the connection parts of the shower with a soft material such as cloth, or use rubber lined grips, before tightening.

Images are for illustrative purposes only

All measurements are approximate

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
