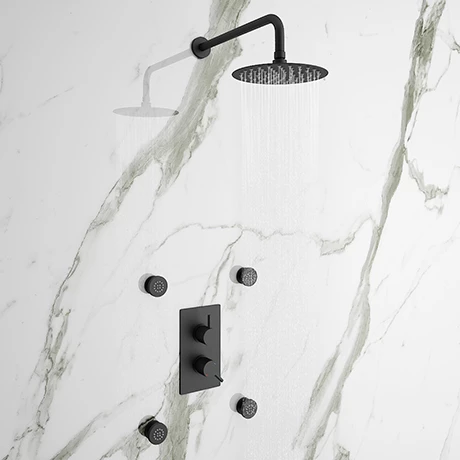

Arezzo Matt Black Round Shower System with Diverter, Fixed Shower Head + 4 Body Jets

The on-trend Arezzo matt black round range brings substantial elegance to the modern bathroom. Package includes a concealed thermostatic shower valve with diverter, fixed shower head and 4 round body jets. The shower valve offers thermostatic showering via two easy-to-operate controls for temperature and flow, integrated diverter switches the water between two shower accessories (overhead shower head or body jets). The ideal solution for multi-option showering.

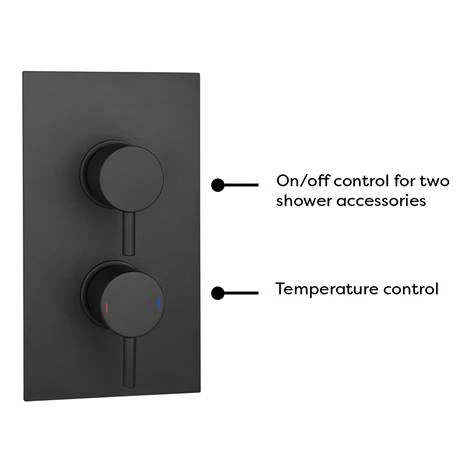

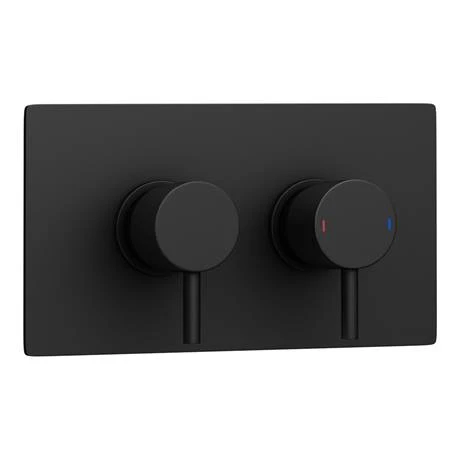

Shower Valve Details

• Height: 215mm
• Width: 120mm
• Style: Modern
• Colour/Finish: Matt Black
• Valve Handles: Round
• Brass Internals
• Thermostatically controlled
• Concealed
• Water Pressure: 0.5 bar to 5 bar
• Rectangular Faceplate
• For use with 2 Outlets
• Built-In Diverter
• Can be fitted vertically or horizontally
• Shower head and handset sold separately
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

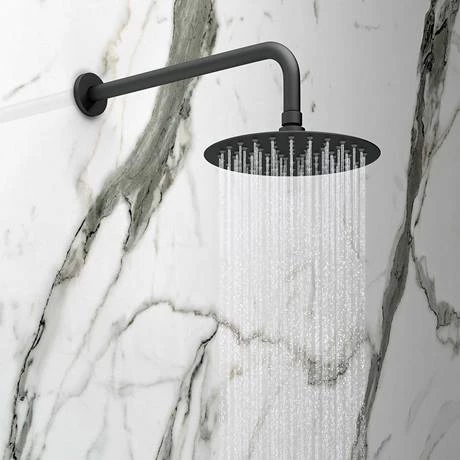

Shower Head + Wall Mounted Arm Details

• Shower Head Dimensions: 200mm Diameter
• Shower Arm Length: 335mm
• Style: Modern
• Colour/Finish: Matt Black
• Material: Stainless Steel
• Rainfall Effect
• Ultra-Thin Shower Head
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted round arm.
• Rub clean nozzles makes this item easy to clean and maintain
• Fixings not included

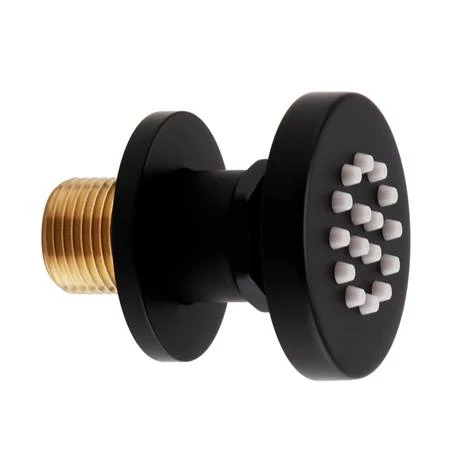

Body Jet Details

• Overall Size: D55 x W50 x H50mm (Approx.)
• Diameter: 50mm
• Product Type: Slim Body Jet
• Shape: Round
• Brass 1/2 inch BSP thread: 18mm long
• Easy clean rubber nozzles
• Colour/Finishes: Matt Black
• Material: Brass
• Supplied with swivel joint

*Installation requires rear access behind the wall.

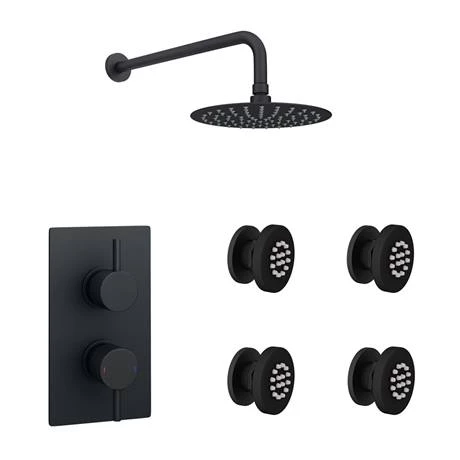

Comprises

(1) Matt Black Twin Round Handles Concealed Shower Valve with Diverter
(1) 200mm Matt Black Ultra Thin Round Head
(1) Matt Black Round Shower Arm
(4) Arezzo Modern Slim Round Body Jet – Matt Black

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
