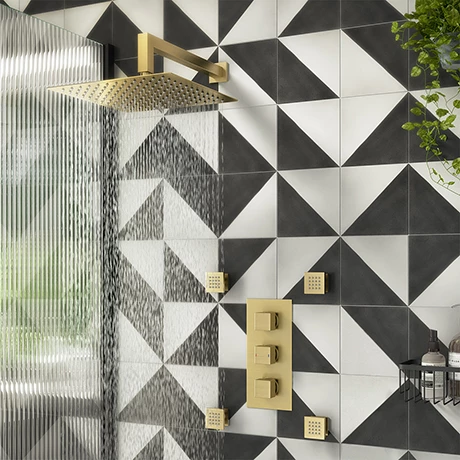

The on-trend Arezzo brushed brass square range brings substantial elegance to the modern bathroom. Package includes a concealed triple thermostatic shower valve, fixed shower head and 4 square body jets.
Offers thermostatic showering via three easy-to-operate controls. Separate controls for temperature and flow. Operates two outlets separately or simultaneously.
Shower Valves Details
- Width: 120mm
- Depth: 140mm
- Height: 265mm
- Style: Modern
- Colour/Finish: Brushed Brass
- Valve Handles: Square
- Solid Brass Internals
- Thermostatically controlled
- Thermostatic Cartridge
- Rectangular Faceplate
- Outlets: 2
- Operates two points separately or simultaneously
- Water Pressure: 0.5 bar to 5 bar
- Can be fitted vertically or horizontally
- Suitable for modern pressurised plumbing systems.
- Automatic shut off in the event of hot or cold water supply failure.
- Hot water temperature 55 to 85 Degrees
Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed. - Should a pump be required we recommend a universal or negative head pump.
- Flow Rates:
- 0.5 bar – 9.6 L/M
- 1 bar – 14.1 L/M
- 2 bar – 20.5 L/M
- 3 bar – 24.8 L/M
- 4 bar – 28.3 L/M
- 5 bar – 32 L/M

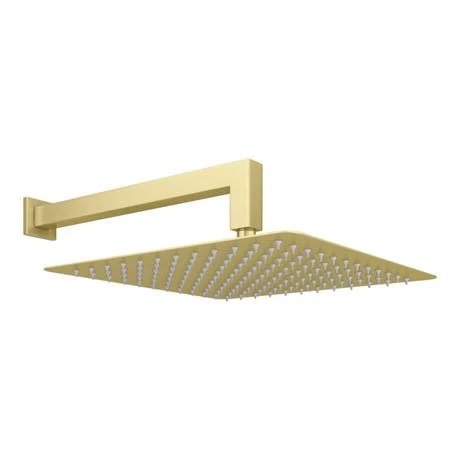

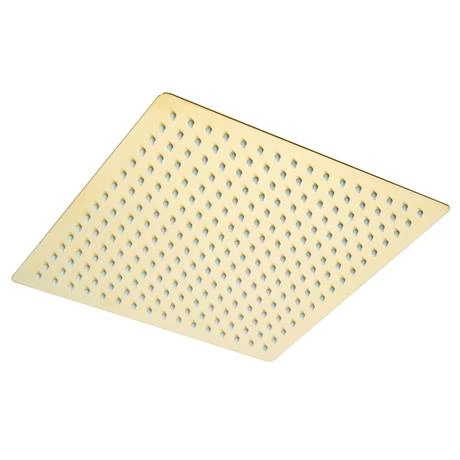

Shower Head with Arm Details
Shower Head Size: 300 x 300mm
Shower Arm Length: 388mm
Style: Modern
Shape: Square
Colour/Finish: Brushed Brass
Material: Brass
Thickness/Profile: 3mm (excluding swivel joint)
90-degree Bend
Wall Mounted
Pressure requirements: 0.5 bar minimum
Inlet Connections: 1/2″ BSP
Supplied with swivel joint Rub clean nozzles makes this item easy to clean and maintain

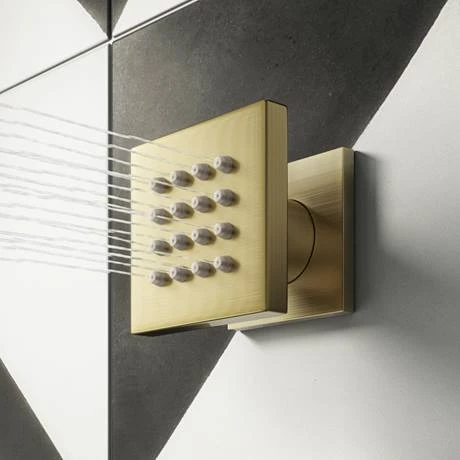

Body Jet Details
Overall Size: D88 x W50 x H50mm (Approx.)
Product Type: Slim Body Jet
Shape: Square
Brass 1/2 inch BSP thread: 18mm long
Easy clean rubber nozzles
Colour/Finishes: Brushed Brass
Material: Brass
Supplied with swivel joint
*Installation requires rear access behind the wall.
All measurements are approximate
Product images are for illustration purposes only
Guarantee: 3 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)
Comprises
(1) Square Triple Concealed Thermostatic Shower Valve with Diverter
(1) Square Wall Mounted 90 Degree Bend Shower Arm – 388mm
(1) Ultra Thin Square Shower Head (300 x 300mm)
(4) Modern Slim Square Body Jets
Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.

Download Instructions
