Arezzo Brushed Brass Round Thermostatic Shower Pack with Wall Mounted Head + Handset

The Arezzo round concealed thermostatic shower valve features a striking minimalist design with a contemporary brushed brass finish and offers thermostatic showering via three easy-to-operate controls. Separate controls for temperature and flow. Operates two shower accessories separately or simultaneously

Supplied with a round wall mounted fixed shower head with swivel joint and a round outlet elbow with parking bracket, flex & pencil shower handset. The solid brass valve body comes with a easy to clean contemporary rectangular face plate.

Shower Valve Details

• Width: 120mm
• Depth: 140mm
• Height: 265mm
• Style: Modern
• Colour/Finish: Brushed Brass
• Valve Handles: Round
• Solid Brass Internals
• Thermostatically controlled
• Thermostatic Cartridge
• Rectangular Faceplate
• Outlets: 2
• Operates two points separately or simultaneously
• Water Pressure: 0.5 bar to 5 bar
• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.
• Automatic shut off in the event of hot or cold water supply failure.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.

• Should a pump be required we recommend a universal or negative head pump
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M


Shower Head with Arm Details

• Shower Head Dimensions: 200mm Diameter
• Shower Arm Length: 361mm
• Style: Modern
• Colour/Finish: Matt Brushed Brass
• Rainfall Effect
• Thin Shower Head
• Wall Mounted
• Eye-catching, brushed brass finish
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted round arm.
• Rub clean nozzles makes this item easy to clean and maintain
• 3 Year Guarantee


Shower Handset Details

• Depth: 69mm
• Height: 246mm
• Width: 60mm
• Colour/Finish: Brushed Brass
• Shape: Round
• Manufactured To The Highest Standards
• Round Handset with Built in Outlet
• Suitable for all plumbing systems
• Manufactured in solid brass
• Eye-catching, brushed brass finish
• Outlet elbow covers unsightly fittings
• Matching 1.5m Shower Hose
• Quality finish
• Pencil handset holder
• Silicone nozzles mean that any lime scale deposits can simply be rubbed away
• Connections: 15 mm (1/2″ BSP)

All measurements are approximate

Comprises

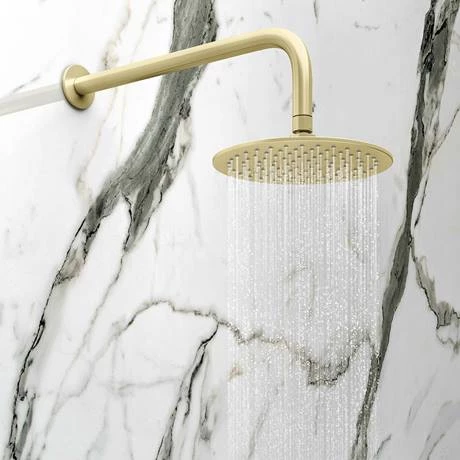

(1) Round 200mm Brushed Brass Fixed Shower Head + Wall Mounted Arm

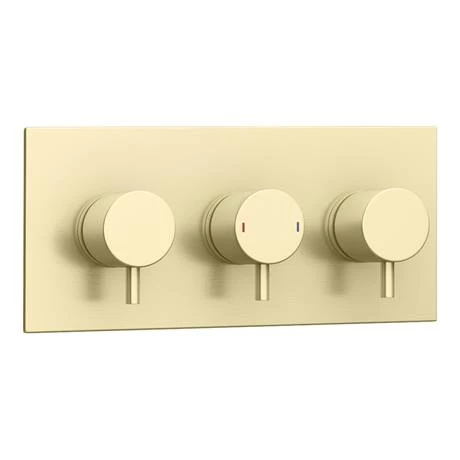

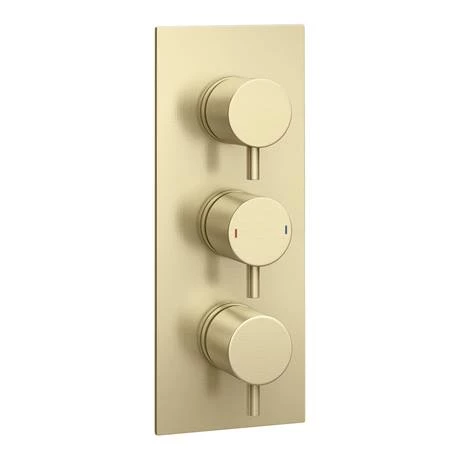

(1) Brushed Brass Round Modern Triple Concealed Shower Valve

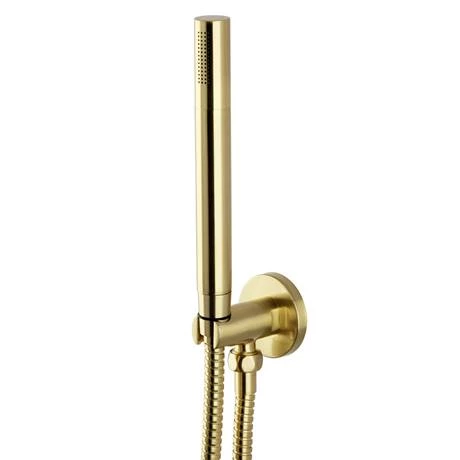

(1) Round Outlet Elbow with Parking Bracket, Flex & Handset

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
