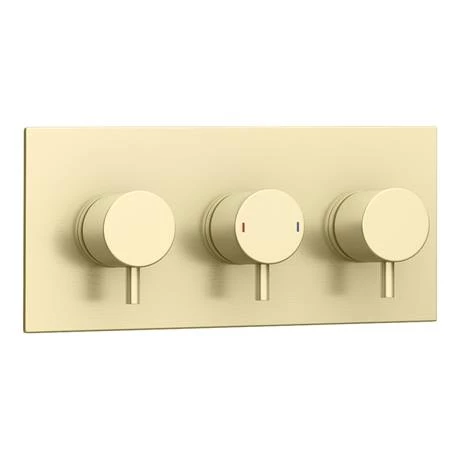

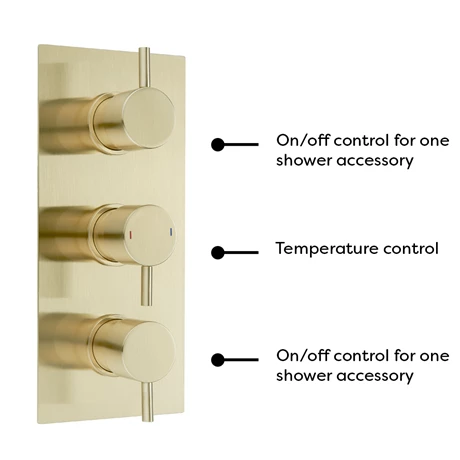

The Arezzo round concealed thermostatic shower valve features a striking minimalist design with a contemporary brushed brass finish and offers thermostatic showering via three easy-to-operate controls. Separate controls for temperature and flow. Operates two shower accessories separately or simultaneously

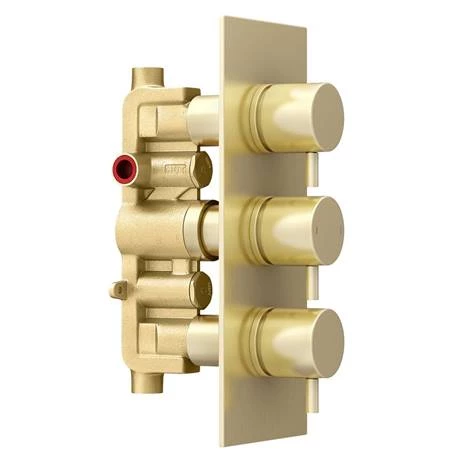

Supplied with an round ceiling mounted fixed shower head with swivel joint and a round outlet elbow with parking bracket, flex & pencil handset. The solid brass valve body comes with a easy to clean contemporary square face plate.
Shower Valves Details
- Width: 120mm
- Depth: 140mm
- Height: 265mm
- Style: Modern
- Colour/Finish: Brushed Brass
- Valve Handles: Round
- Solid Brass Internals
- Thermostatically controlled
- Thermostatic Cartridge
- Rectangular Faceplate
- Outlets: 2
- Operates two points separately or simultaneously
- Water Pressure: 0.5 bar to 5 bar
- Can be fitted vertically or horizontally
- Suitable for modern pressurised plumbing systems.
- Automatic shut off in the event of hot or cold water supply failure.
- Hot water temperature 55 to 85 Degrees
- Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
- Should a pump be required we recommend a universal or negative head pump.

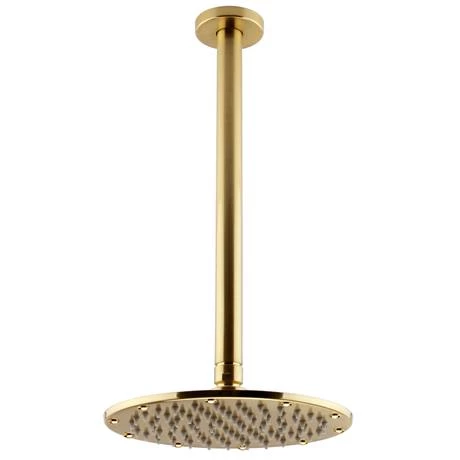

Shower Head with Arm Details
- Shower Head Dimensions: 195mm Diameter
- Shower Arm Length: 300mm
- Style: Modern
- Colour/Finish: Matt Brushed Brass
- Rainfall Effect
- Thin Shower Head
- Ceiling Mounted
- Eye-catching, brushed brass finish
- Inlet Connections: 1/2″ BSP
- Pressure requirement 0.5 bar minimum
- Supplied with swivel joint and wall mounted round arm.
- Rub clean nozzles makes this item easy to clean and maintain
- Shower arm has a 3 Year Guarantee

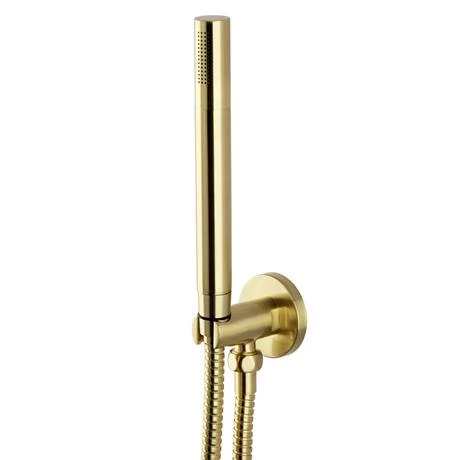

Shower Handset Details
- Depth: 69mm
- Height: 246mm
- Width: 60mm
- Colour/Finish: Brushed Brass
- Shape: Round
- Manufactured To The Highest Standards
- Round Handset with Built in Outlet
- Suitable for all plumbing systems
- Manufactured in solid brass
- Eye-catching, brushed brass finish
- Outlet elbow covers unsightly fittings
- Matching 1.5m Shower Hose
- Quality finish
- Pencil handset holder
- Silicone nozzles mean that any lime scale deposits can simply be rubbed away
- Connections: 15 mm (1/2″ BSP)
Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)
All measurements are approximate
Pictures for illustrative purposes only
Comprises
(1) Brushed Brass Ultra Thin Round Head
(1) Brushed Brass Round Ceiling Mounted Shower Arm
(1) Brushed Brass Round Modern Triple Concealed Shower Valve
(1) Round Outlet Elbow with Parking Bracket, Flex & Handset
Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
