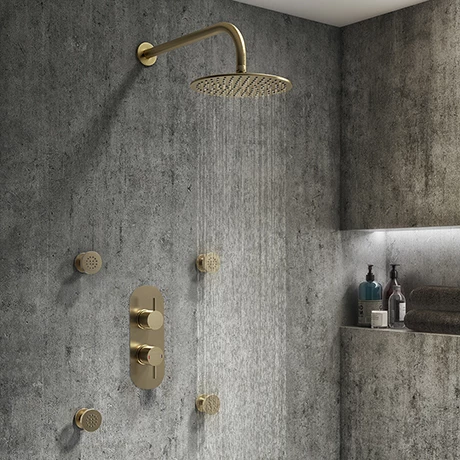

Arezzo Brushed Brass Round Shower System w. Diverter, Fixed Head + 4 Body Jets (Oval Backplate)

The on-trend Arezzo brushed brass round range brings substantial elegance to the modern bathroom. Package includes a concealed thermostatic shower valve with diverter, fixed shower head and 4 round body jets. The shower valve offers thermostatic showering via two easy-to-operate controls for temperature and flow, integrated diverter switches the water between two shower accessories (overhead shower head or body jets). The ideal solution for multi-option showering. The solid brass valve body comes with a easy to clean contemporary slim oval faceplate.

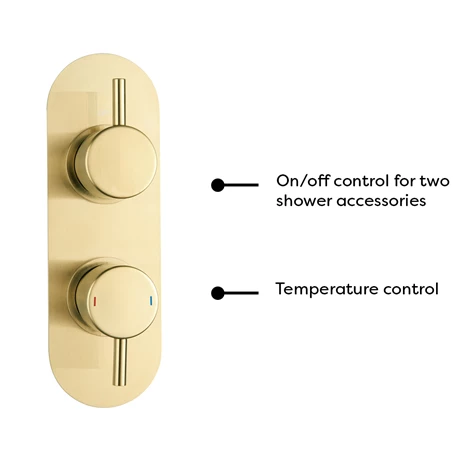

Shower Valve Details

• Height: 215mm
• Width: 70mm
• Style: Modern
• Colour/Finish: Brushed Brass
• Valve Handles: Round
• Oval Backplate
• Brass Internals
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Rectangular Faceplate
• For use with 2 Outlets
• Built-In Diverter

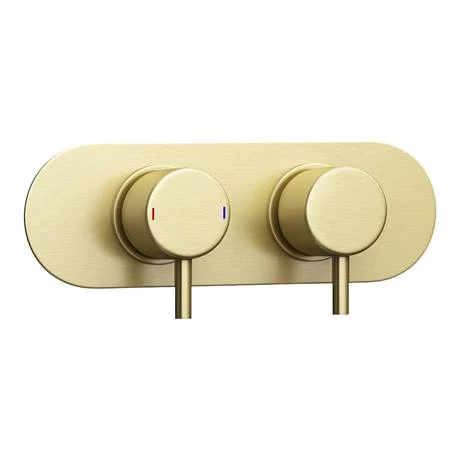

• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

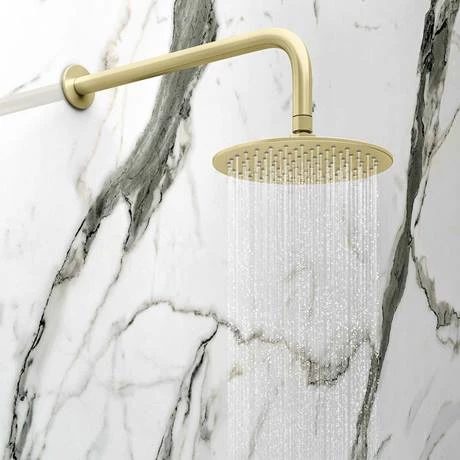

Shower Head + Wall Mounted Arm Details

• Shower Head Dimensions: 200mm Diameter
• Shower Arm Length: 361mm
• Style: Modern
• Colour/Finish: Matt Brushed Brass
• Rainfall Effect
• Thin Shower Head
• Wall Mounted
• Eye-catching, brushed brass finish
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted round arm.
• Rub clean nozzles makes this item easy to clean and maintain
• 2 Year Guarantee


Body Jet Details

• Overall Size: D55 x W50 x H50mm (Approx.)
• Diameter: 50mm
• Product Type: Slim Body Jet
• Shape: Round
• Brass 1/2 inch BSP thread: 18mm long
• Easy clean rubber nozzles
• Colour/Finishes: Brushed Brass
• Material: Brass
• Supplied with swivel joint

*Installation requires rear access behind the wall.

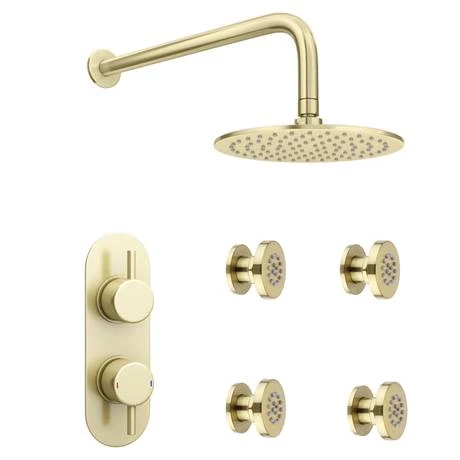

Comprises

(1) Twin Round Handles Concealed Shower Valve w. Diverter + Oval Backplate
(1) 200mm Brushed Brass  Ultra Thin Round Head
(1) Brushed Brass Round Shower Arm
(4) Arezzo Modern Slim Round Body Jet – Brushed Brass

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
