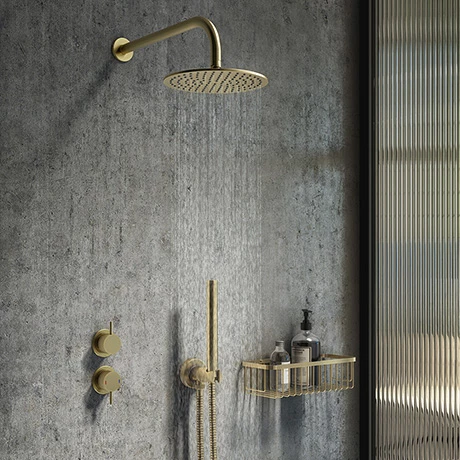

Arezzo Brushed Brass Concealed Individual Diverter + Thermostatic Control Valve with Handset + Wall Mounted Shower Head

The Arezzo Brushed Brass Concealed Individual Diverter and Thermostatic Control Shower Valve Pack features a minimalist round design. This shower valve pack is perfect for installing in a concealed arrangement, pack comes supplied with a wall mounted fixed shower head and a matching round shower handset.

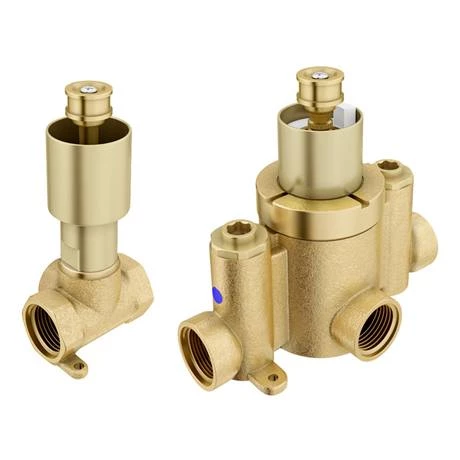

The Arezzo concealed shower valve consists of two individual controls, for temperature and flow. The brass valve bodies comes with contemporary brushed brass round back plates and handles. This concealed valve has been designed to divert between two shower accessories.

Shower Valves Details

• Diverter Valve: W70 x H70 x D138mm
• Thermostatic Control: W70 x H150 x D138mm
• Backplate: 70mm Diameter
• Style: Modern
• Range: Arezzo
• Valve Handles: Round
• Colour/Finish: Brushed Brass
• Material: Brass Internals
• Concealed fitting

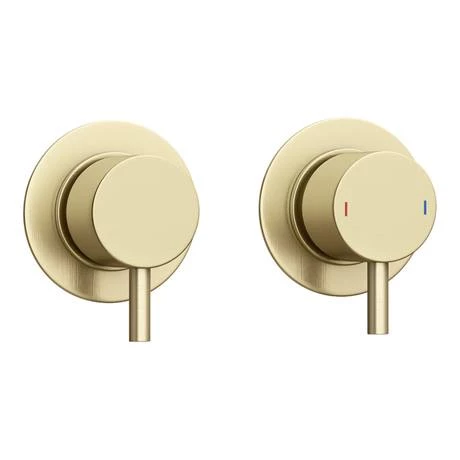

• Round backplates
• For use with 2 Outlets
• Min operating pressure: 0.5 bar
• Max operating pressure: 5 bar
• Hot Water Supply Temperature 55-85°C
• Cold Water Supply Temperature 4-29°C
• Suitable for modern pressurised plumbing systems.
• Pack includes individual thermostatic control with a individual diverter valve for switching water flow between 2 outlets.
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.

• Should a pump be required we recommend a universal or negative head pump
• For further information refer to products installation instructions

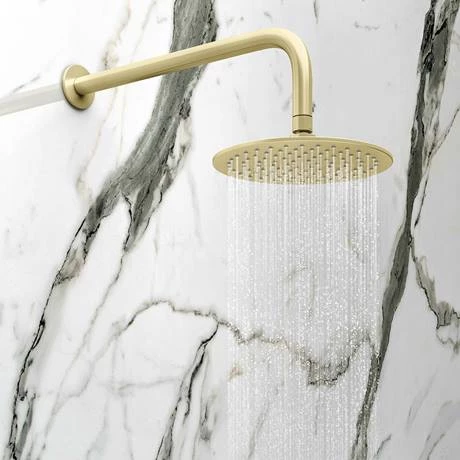

Shower Head with Arm Details

• Shower Head Dimensions: 200mm Diameter
• Shower Arm Length: 361mm
• Style: Modern
• Colour/Finish: Matt Brushed Brass
• Rainfall Effect
• Thin Shower Head
• Wall Mounted
• Eye-catching, brushed brass finish
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted round arm.
• Rub clean nozzles makes this item easy to clean and maintain
• Shower arm has a 3 Year Guarantee

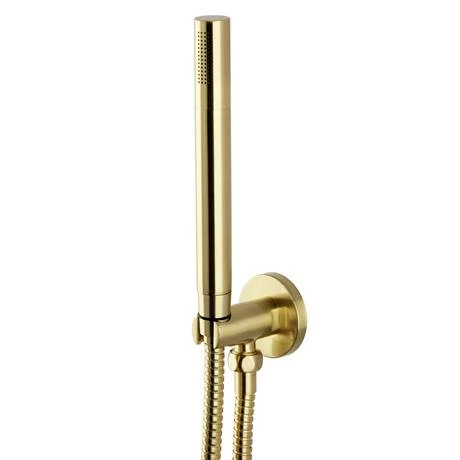

Shower Handset Details

• Depth: 69mm
• Height: 246mm
• Width: 60mm
• Colour/Finish: Brushed Brass
• Shape: Round
• Manufactured To The Highest Standards
• Round Handset with Built in Outlet
• Suitable for all plumbing systems
• Manufactured in solid brass
• Eye-catching, brushed brass finish
• Outlet elbow covers unsightly fittings
• Matching 1.5m Shower Hose
• Quality finish
• Pencil handset holder
• Silicone nozzles mean that any lime scale deposits can simply be rubbed away
• Connections: 15 mm (1/2″ BSP)

Shower valve has a 5 year Guarantee (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

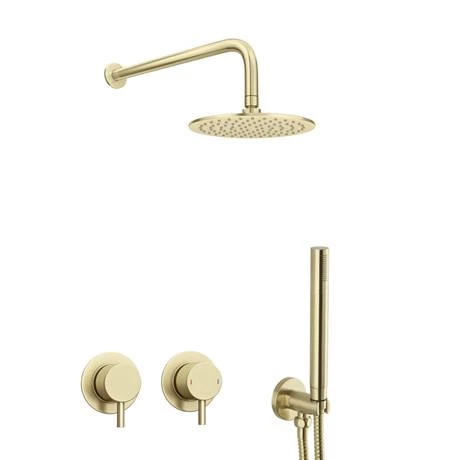

Comprises

(1) Round 200mm Brushed Brass Fixed Shower Head + Wall Mounted Arm
(1) Brushed Brass Concealed Individual Diverter + Thermostatic Control Shower Valve
(1) Round Outlet Elbow with Parking Bracket, Flex & Handset

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
