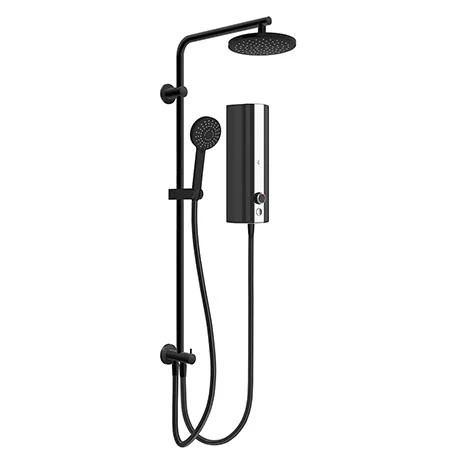

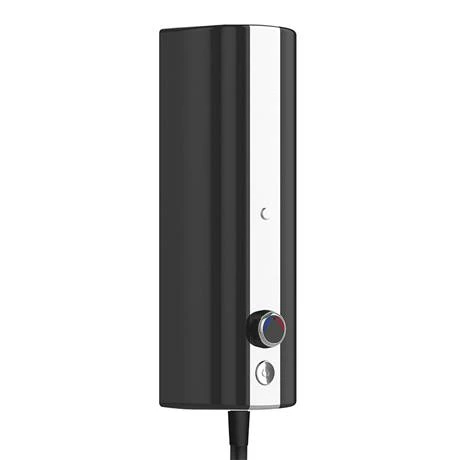

AQUAS Aquamax Pro with Column Manual 9.5kw Matt Black Electric Shower

Aquas Fit with Bella Full mate black Manual Heater 9.5 KW, shower column with 3-Function Handshower and 200mm Overhead.

AQUA Pro is our more affordable design line. It brings fresh design into your bathroom. Reduced to the max it comes with two power settings for summer and winter. The solid shower column and multi-function shower head offer a great showering experience.

Latest model now features two power settings for warm and cold seasons:

• 9.5kw setting for cooler season
• ECO 5kw setting for warmer season
• Power setting remains in position even after restart of shower for comfort
• Before switching from Eco Mode to the higher  9.5kw setting we recommend turning Volume control to full cold

Product Details

• Range: AQUA PRO SERIES
• Type: Aquas Pro with Bella and Smart 200
• Colour: Matte Black
• Safety & Comfort Setting:
• Eco Button
• 2-Step thermal protection
• Auto temperature protection system
• Safety Device AQUAMAX
• High pressure protection
• Temperature and flow stabilizer
• Design Advantages:
• Fiber reinforced Tank – less limescale, extended timelive, energy efficient, burst resistant
• Start/Stop button
• Easy Grip – temperature control
• Shower Fittings:
• Showercolumn with front load slider
• Distance between rail brackets adjustable

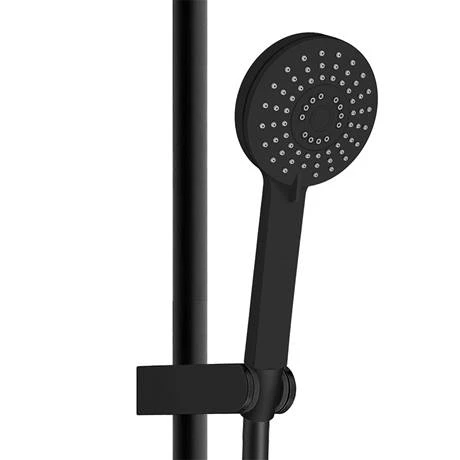

• Handshower 100mm diameter, 3 spray pattern: rain, massage, mix air technology

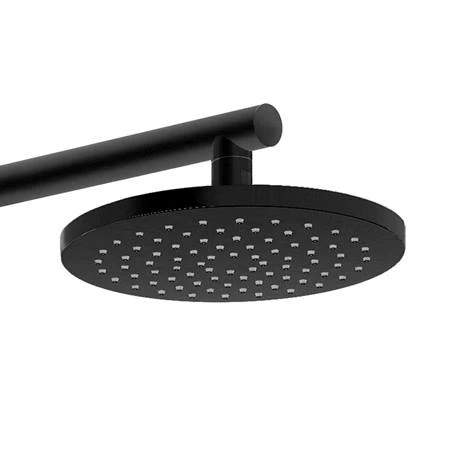

• Overhead shower 200mm with rub nozzles and turtlehead ball joint

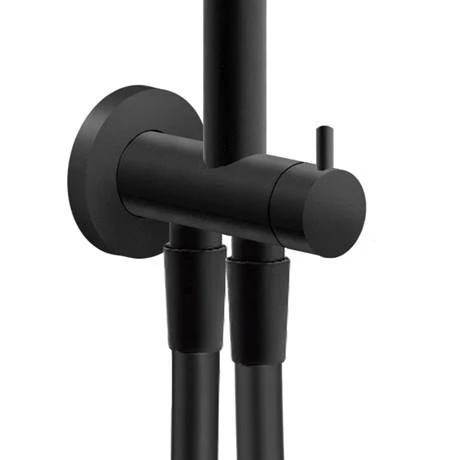

• Features a Two-way ceramic divertor to switch between Overhead and Handshower
• Smooth silver hose 1,5m 1/2″ x  1/2″ twistfree non conductive
• Rub clean nozzles
• Installation:
• Use standard UK plumbing connections – compression – Push fit.
• Cable entry points left hand side – top, bottom, back : right hand side – top, bottom, back
• Outlet connection 1/2″ compression and pushfit 1/2″
• Power Input:
• A Power Input of 240 V and 40 amp circuit breaker is required for max output ( 9.5 KW ) anything less and the heater will not operate at max efficiency
• Min-Max Working Pressure:
• A Min Dynamic flow pressure of 100 K /Pa ( 15 ib / Sq In ) – 1.0 BAR  is required
• A Max Static  pressure of 500 K /Pa ( 75 ib / Sq In ) – 5.0 BAR  should not be exceeded

Approvals: BEAB, UK

Frequently Asked Questions

https://aquasshower.co.uk/en/customer-care/question-and-answers

Additional images are for illustration purposes only

Gravity Fed Systems:
This AQUAS shower needs a minimum 1.0 bar of static water pressure feeding the shower, if the shower is being fitted to a gravity fed water tank from the loft (which we do not recommend) it needs to be fitted with a negative or universal head shower pump, this AQUAS shower is meant to have its own independent water feed from the mains.
