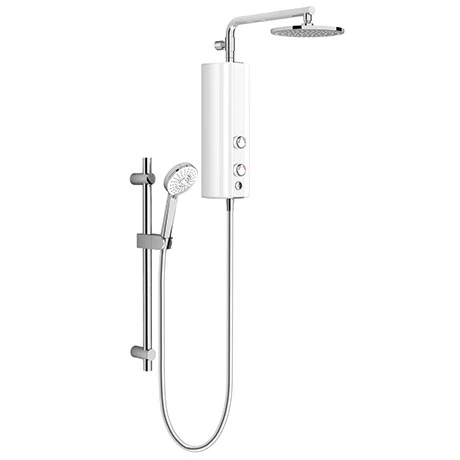

Looking for an electric shower that will stay at a temperature that’s just right for you? This AQUAS AquaMax White Electric Shower uses clever pressure balance technology to keep your water temperature consistent. This contemporary 9.5kw electric shower boasts a rainfall head and a spray pattern handset with three indulgent settings to choose from – rain, massage or mixed – so you can pick one to suit your mood. This AquaMax flex shower features an ECO 5kw setting for the warmer season, so you’ll save energy in the summer months.
Product Details
- Range: AQUAMAX
- Name: Top Manual FLEX SMART
- Colour: Gloss White Face / Chrome Body
- Handshower:

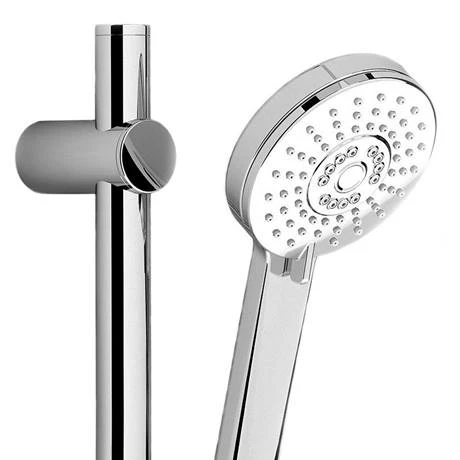

- Handshower 100mm diameter, 3 spray pattern: rain, massage, mixed

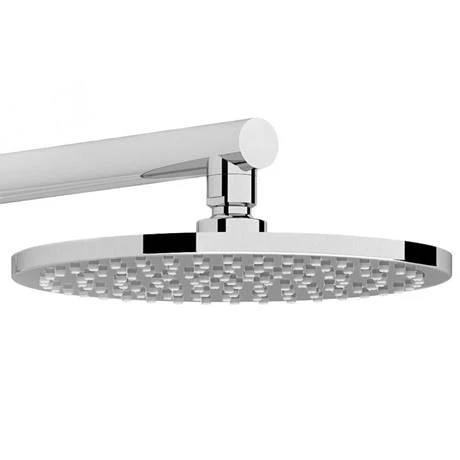

- Overhead shower: SMART 200mm
- Slidebar:
- Rail length 600mm with front load slider
- Distance between rail brackets adjustable
- Smooth silver hose 1,5m 1/2″ x 1/2″ twistfree non conductive
- Shower arm 400mm with free fixation
- Power Rating: 9.5kw
- Minimum Flow required: 1.0 Bar
- Temperature control:
- Electricity leakage safety
- High pressure protection
- Temperature and flow stabilizer
- Advantages:
- Fiber reinforced Tank – less limescale, extended life, energy efficient, burst resistant

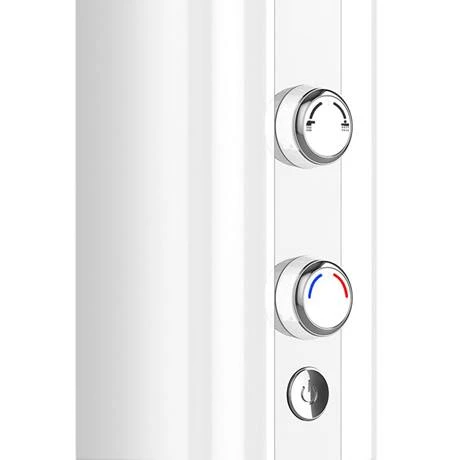

- Controls:
- Start/Stop button
- Easy Grip – temperature control
- Two-way ceramic divertor to switch between Overhead and Handshower
- Installation:
- Electrical connection
- Water entry points right – top, bottom, back
- All indulge and AQUAMAX models have a water connection that is suitable for a “right” only water supply connection.
- The water connection pipe is not reversible.
- Use standard UK plumbing connections – compression – Push fit.
- Cable entry points left hand side – top, bottom, back : right hand side – top, bottom, back
- Outlet connection 1/2″ compression and pushfit 1/2″
- Power Input:
- A Power Input of 240 V and 40 amp circuit breaker is required for max output ( 9.5 KW ) anything less and the heater will not operate at max efficiency
- Min-Max Working Pressure:
- A Min Dynamic flow pressure of 100 K /Pa ( 15 ib / Sq In ) – 1.0 BAR is required
- A Max Static pressure of 500 K /Pa ( 75 ib / Sq In ) – 5.0 BAR should not be exceeded
- Approvals: BEAB, CE; ROHS
Frequently Asked Questions
https://aquasshower.co.uk/en/customer-care/question-and-answers
Images are for illustration purposes only
Warranty: 2 years
Gravity Fed Systems:
This AQUAS shower needs a minimum 1.0 bar of static water pressure feeding the shower, if the shower is being fitted to a gravity fed water tank from the loft (which we do not recommend) it needs to be fitted with a negative or universal head shower pump, this AQUAS shower is meant to have its own independent water feed from the mains.
