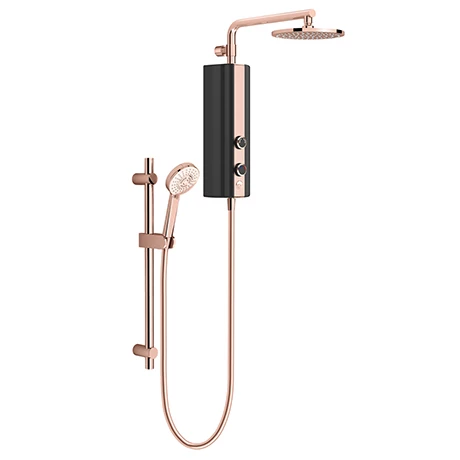

AQUAS AquaMax Flex Manual Smart 9.5KW Black + Rose Gold Electric Shower

The stylish Black and Rose Gold AQUAMAX Flex Shower is equipped with a Smart 200 overhead shower, 3 spray pattern handshower and an easy to use control unit. There is a built-in pressure balance for a steady temperature.

Two-Way Divertor
Features a Two-way ceramic divertor to switch between Overhead and Handshower.

Longer Reach
Extra long 400mm+ reach extending the shower head out further from the wall

Latest model now features two power settings for warm and cold seasons:
9.5kw setting for cooler season
ECO 5kw setting for warmer season
Power setting remains in position even after restart of shower for comfort
Before activating 9.5kw setting we recommend turning Volume control to full cold
Eye-catching rose gold finish

Product Details

•
  Range: AQUAMAX
•
  Name: Top Manual FLEX SMART
•
  Colour: Gloss Black Face / Rose Gold Body
•
  Handshower:
•

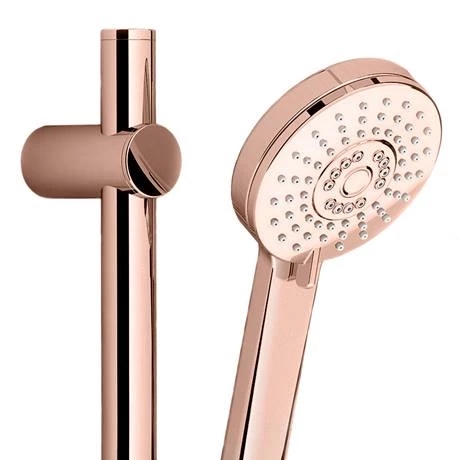

  Handshower 100mm diameter, 3 spray pattern: rain, massage, mixed
•

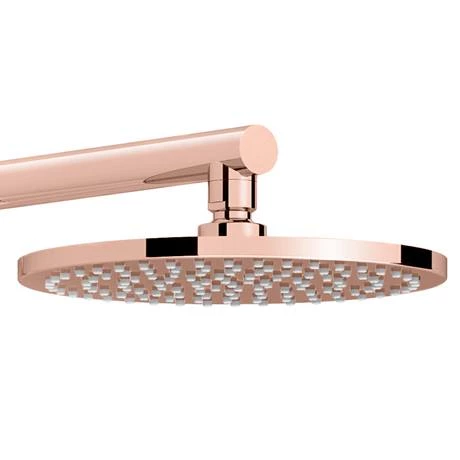

  Overhead shower: SMART 200mm
•
  Slidebar:
•
  Rail length 600mm with front load slider
•
  Distance between rail brackets adjustable
•
  Smooth rose gold hose 1,5m 1/2″ x  1/2″ twistfree non conductive
•
  Shower arm 400mm with free fixation
•
  Power Rating: 9.5kw
•
  Minimum Flow required: 1.0 Bar
•
  Temperature control:
•
  Electricity leakage safety
•
  High pressure protection
•
  Temperature and flow stabilizer
•
  Advantages:
•
  Fiber reinforced  Tank – less limescale, extended life, energy efficient, burst resistant
•

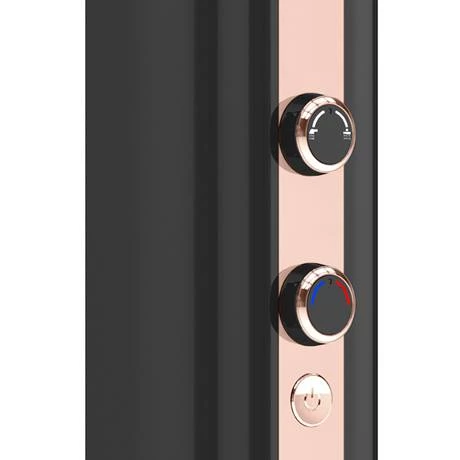

  Controls:
•
  Start/Stop button
•
  Easy Grip – temperature control
•
  Two-way ceramic divertor to switch between Overhead and Handshower
•
  Installation:
•
  Electrical connection
•
  Water entry points right – top, bottom, back
•
  All indulge and AQUAMAX models have a water connection that is suitable for a “right” only water supply connection.
•
  The water connection pipe is not reversible.
•
  Use standard UK plumbing connections – compression – Push fit.
•
  Cable entry points left hand side – top, bottom, back : right hand side – top, bottom, back
•
  Outlet connection 1/2″ compression and pushfit 1/2″
•
  Power Input:
•
  A Power Input of 240 V and 40 amp circuit breaker is required for max output ( 9.5 KW ) anything less and the heater will not operate at max efficiency
•
  Min-Max Working Pressure:
• A Min Dynamic flow pressure of 100 K /Pa ( 15 ib / Sq In ) – 1.0 BAR  is required
• A Max Static  pressure of 500 K /Pa ( 75 ib / Sq In ) – 5.0 BAR  should not be exceeded
• Approvals: BEAB, CE; ROHS

Frequently Asked Questions

https://aquasshower.co.uk/en/customer-care/question-and-answers

Images are for illustration purposes only

Warranty: 2 years

Gravity Fed Systems:
This AQUAS shower needs a minimum 1.0 bar of static water pressure feeding the shower, if the shower is being fitted to a gravity fed water tank from the loft (which we do not recommend) it needs to be fitted with a negative or universal head shower pump, this AQUAS shower is meant to have its own independent water feed from the mains.
