The Apollo range of thermostatic bathroom fittings combines both style and ease of control. This Bath/Shower Mixer is designed to be wall mounted, the mixer is thermostatic allowing the user to control the temperature from the valve. The bath shower mixer features a diverter to control function between tap and shower slider rail kit. The multi-function shower head allows several pressure streams for those who want the power shower effect one morning and and a wider spread burst the next.

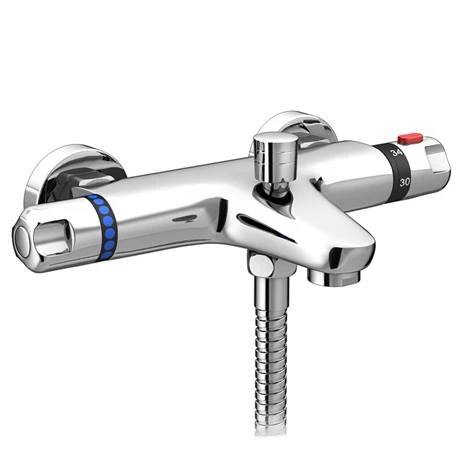

Bath Shower Mixer Details
- Height: 40mm
- Width: 280mm
- Depth: 175mm
- Colour: Chrome
- Material: Brass
- Type: Bath Shower Mixer Tap
- Wall Mounting
- Bottom Outlet
- Thermostatically controlled
- Suitable for water systems between 1-4 bar pressure
- Knob allows the user to divert the water between bath tap and shower
- Centre to centre of inlet is 150mm
- Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
- Should a pump be required we recommend a universal or negative head pump.

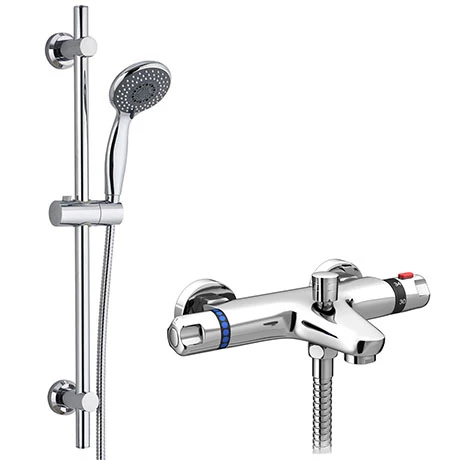

Slide Rail Kit Details
- Slide Rail Height: 700mm
- Slide Rail Projection: 85mm
- Slide Rail Width: 35mm
- Colour/Finish: Polished Chrome
- Contemporary style
- LP1 – 0.5 bar pressure minimum
- Rust resistant hose
- Easy Clean Multi-Function Handset
Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)
Certain parts are chrome plated plastic, not metal. The only parts that are not plastic are the bath shower mixer, rail and the hose.
All measurements are approximate
Product images for illustration purposes only
Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
